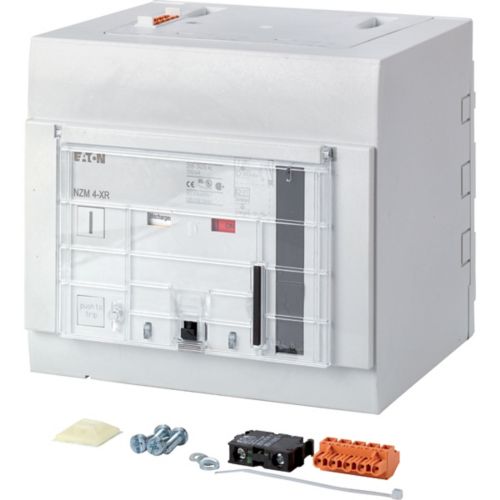

Eaton NZM4-XR208-240AC Remote Operator

Eaton NZM4-XR208-240AC Remote Operator

Eaton NZM4-XR208-240AC Remote Operator

Product Description :

• They typically refers to someone who controls or operates a device, machine, or system from a distance. This could be anything from remotely piloting a drone to managing a network server from a different location. The concept has become increasingly common with advancements in technology, enabling tasks to be performed efficiently without physical presence.
• They might control heavy machinery or robotic arms from a control room, using joysticks, buttons, or even more advanced interfaces like virtual reality. In automotive engineering, remote operators might control test vehicles or robotic systems for research and development purposes.
• They could be something as basic as a lever or switch that can be activated from a distance, such as a garage door opener or a remote-controlled toy.

Product Specification :

• Breaking time	3000 ms
  Closing delay	100 ms
  Voltage type	AC
  Lifespan, mechanical	10000 operations
  Number of poles	Three-pole/Four-pole
  Number of operations per hour – max	20
  Voltage tolerance – max	1.1
  Voltage tolerance – min	.85
  Rated control supply voltage (Us) at AC, 50 Hz – max	240 V
  Rated control supply voltage (Us) at AC, 50 Hz – min	208 V
  Rated control supply voltage (Us) at AC, 60 Hz – max	240 V
  Rated control supply voltage (Us) at AC, 60 Hz – min	208 V
  Rated control supply voltage (Us) at DC – max	0 V
  Rated control supply voltage (Us) at DC – min	0 V
  Rated operating frequency	50 Hz
  Signal duration of remote operator at switch off – min	500 ms
  Signal duration of remote operator at switch on – min	30 ms
  Switch drive type	Motor drive
  Terminal capacity (solid/flexible conductor)	0.75 mm² – 2.5 mm² with ferrule 18 – 14 AWG
  Operating voltage – max	1.1 x Us
  Operating voltage – min	0.85 x Us
  Power consumption	350 VA (110 – 130 V AC)
