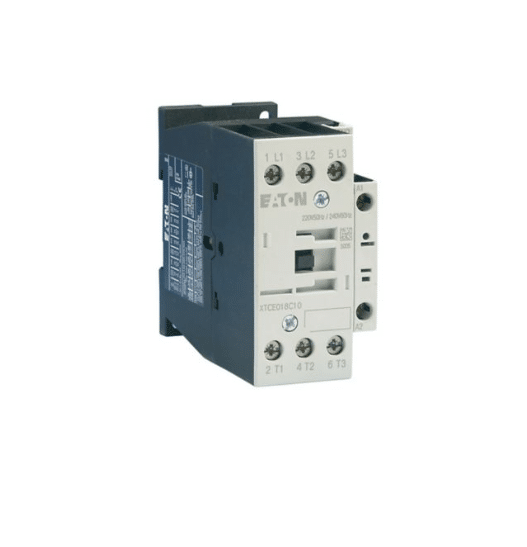

Eaton XTCE025C10 IEC Contactor
Eaton XTCE025C10 IEC Contactor
Product Description :
- An IEC contactor refers to an electrical switching device that is designed and manufactured according to the standards set by the International Electrotechnical Commission (IEC).
- It is a global organization that publishes international standards for electrical technologies. They are design with specific features based on IEC standards, including standardized physical dimensions, electrical ratings, and compatibility with other IEC devices. This ensures interchangeability and easy integration into electrical systems.
-
An IEC contactor is an electromechanical switching device designed to control the flow of electrical power in industrial and commercial circuits, in accordance with IEC (International Electrotechnical Commission) standards. It allows safe, reliable switching of motors, lighting, heating, and other electrical loads.
-
IEC contactors are manufactured from high-quality insulating materials and durable metals, ensuring excellent electrical performance, mechanical endurance, and resistance to heat and wear. They are available in various voltage and current ratings, suitable for AC and DC applications.
Product Specification:
- Amperage Rating- 25A
- HP rating – max- 2, 3, 5/ 7.5, 10, 15, 20 hp (1/3PH @115,200,230/200,230,460,575 V)
- Number Of Poles- Three-pole
- Type- Full voltage non-reversing contactor
- Frequency rating- 60 Hz
- Frame size- 45 mm
- Terminals- Screw terminals
- Coil voltage- 208 Vac, 60 Hz
- Contact configuration- 1 NO
- Continuous ampere rating- 25 A
- Series- XT IEC
- Operation-Non-reversing
