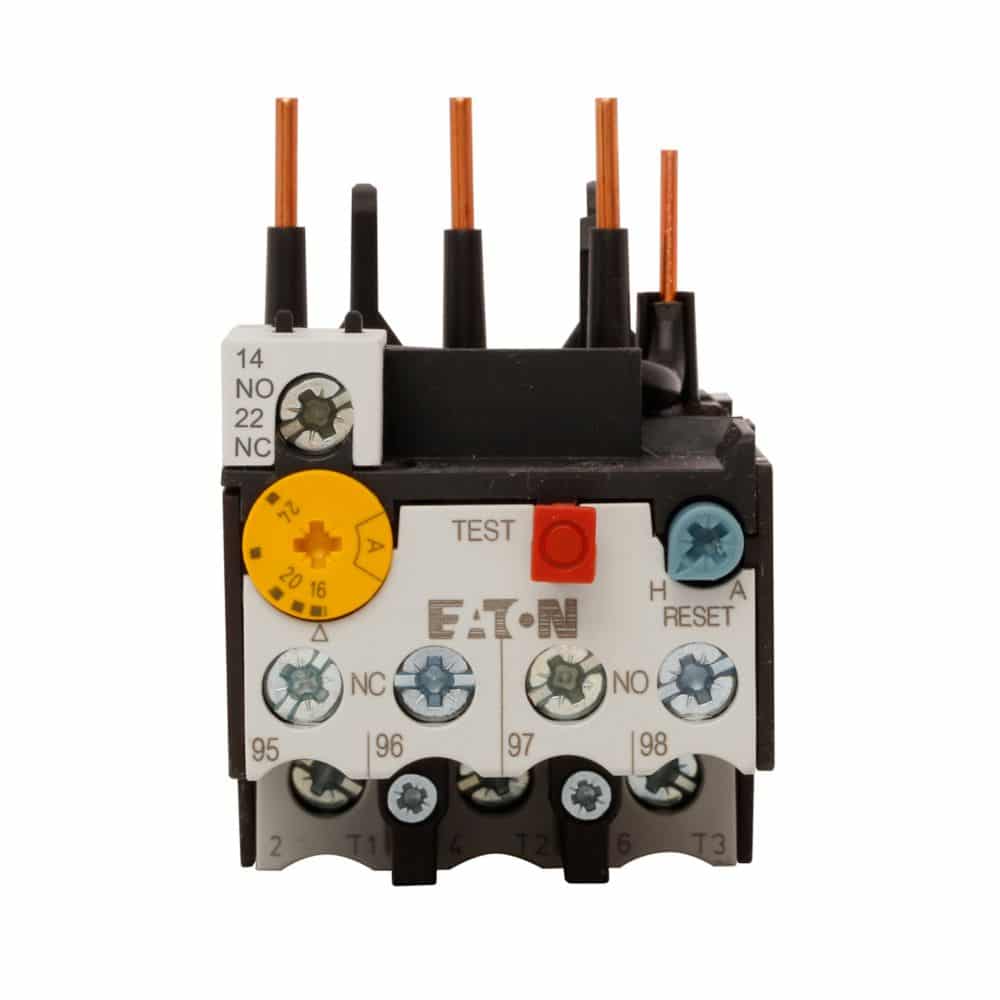

Eaton XTOB024CC1 Bimetallic Overload Relay
Eaton XTOB024CC1 Bimetallic Overload Relay
Product Description :
- It is an electromechanical device used to protect electric motors from overheating due to overload conditions. It operates based on the principle of thermal expansion of two different metals bonded together.
- The core component consists of two metals with different coefficients of thermal expansion. When current flows through the relay, the heat generated causes the strip to bend due to unequal expansion.
- As the temperature rises from an overload condition, the bending of the strip eventually activates a switch mechanism that disconnects the motor from the power supply, preventing damage.
-
A bimetallic overload relay is an electromechanical protective device designed to safeguard electric motors from overload conditions. It operates using a bimetallic strip that bends when excessive current flows, tripping the relay to interrupt the circuit and prevent motor damage due to overheating.
-
Bimetallic overload relays are manufactured with durable metals and precision mechanisms, ensuring reliable, repeatable performance under varying load conditions. They are typically adjustable to accommodate different motor ratings and provide rapid response to abnormal current conditions.
-
These relays are widely used in industrial automation, motor control panels, HVAC systems, pumps, and machinery, providing essential protection for motors, reducing downtime, and enhancing system safety.
Product Specification :
- Used with18-32A contactor
- Overload range- 16-24 A
- Type- XT IEC Bimetallic Overload Relay
- Frame size- 45 mm
- Contact configuration- 1 NO, 1 NC
- Mounting- Direct
- Trip type-10 A
- Product Length/Depth- 3.27 in
- Product Height- 1.89 in
- Product Width- 1.77 in
