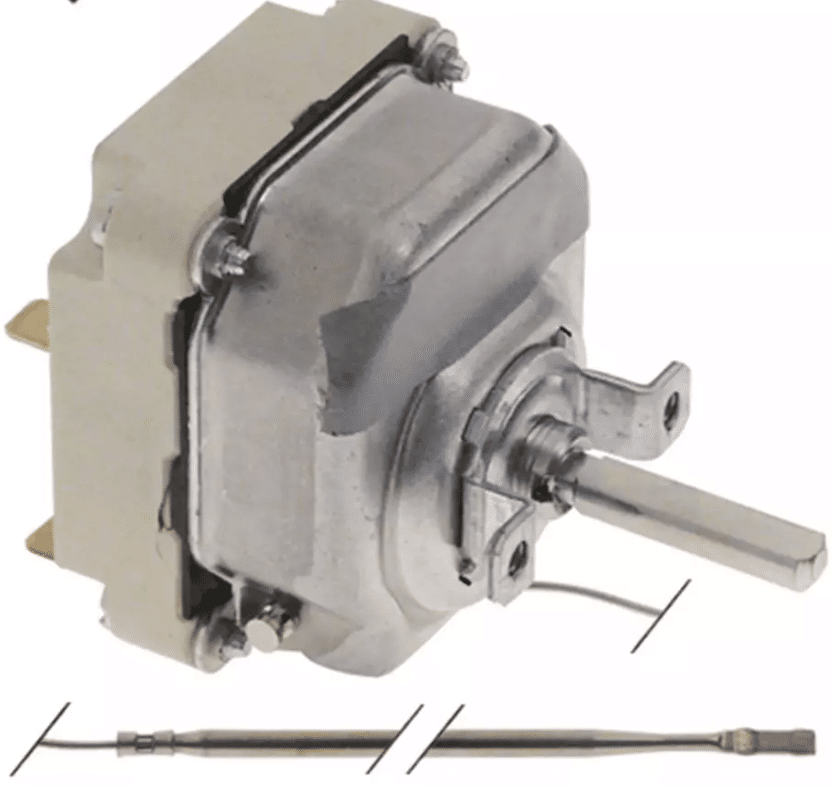

EGO 5534062160 Thermostat
EGO 5534062160 Thermostat
Product Description :
- It is a device used to regulate temperature by sensing changes and controlling heating or cooling systems accordingly. It maintains a set temperature by turning the system on or off as needed.
- Thermostats are commonly found in homes, buildings, vehicles, and appliances like refrigerators and ovens. They can operate manually or automatically, and modern versions often feature digital displays and programmable settings for greater control and energy efficiency.
- They can be simple mechanical devices or advanced digital units with programmable features for precise temperature regulation.
- A Thermostat is a temperature-regulating device used in engines, HVAC systems, and industrial machinery to maintain optimal operating temperatures. In engines, it controls the flow of coolant between the engine and radiator, ensuring that the engine warms up quickly and operates within a safe temperature range. Thermostats are designed to respond to temperature changes using a wax element, bimetallic strip, or electronic sensor, which expands or contracts to open or close a valve.
Product Specification :
| Max. temperature |
350°C |
| Number of poles |
3 poles |
| Function |
3) NO |
| Probe diameter |
3mm |
| Probe length |
147mm |
| Capillary tube length |
900mm |
| Stuffing box nut | – |
| Shaft diameter |
6×4.6mm |
| Operating temperature range |
100-350°C |
| shaft length |
26mm |
| Rotation angle | 270° |
