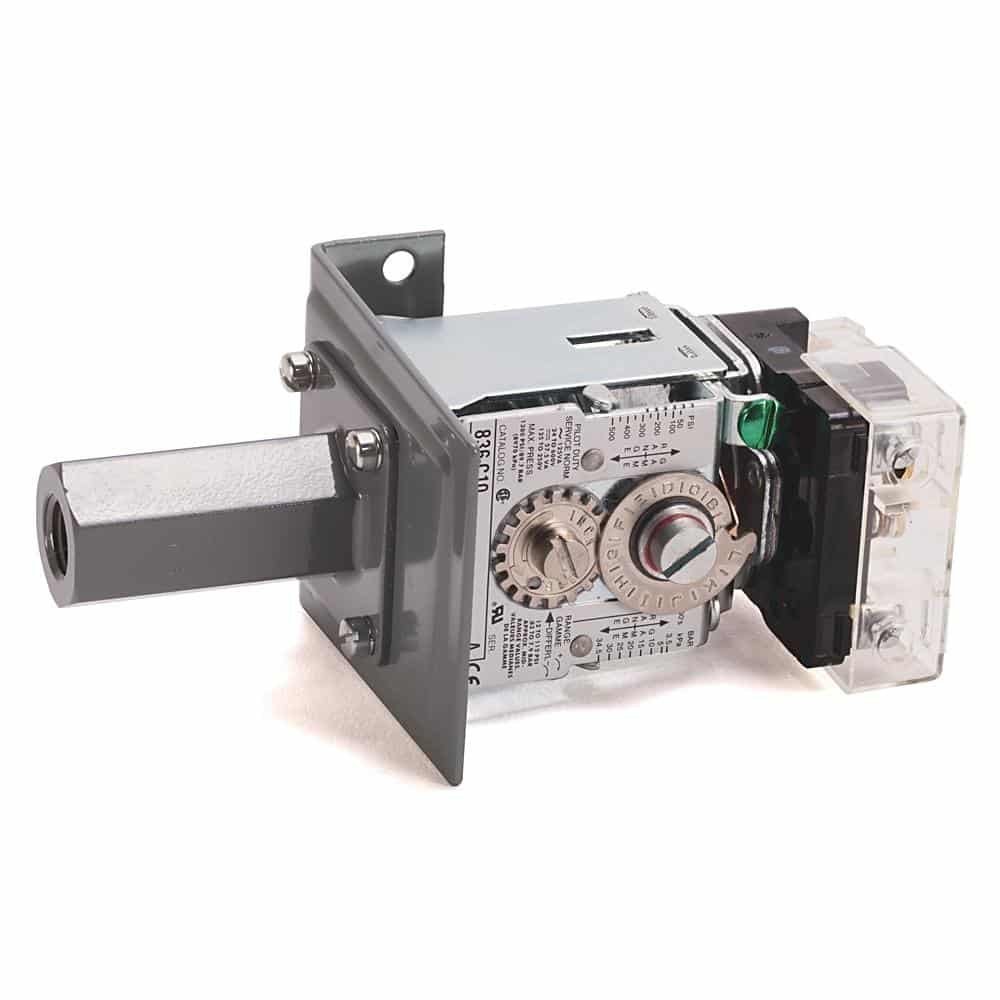

Electro-Mech Pressure Control 836-C5E
| Explosion-proof |
Yes |
| Housing material |
Other |
| Style |
Style C product |
| Actuator type |
External bellows: Copper Alloy, Stainless Steel Type 316 |
| Suitable for water |
Yes |
| Suitable for air |
Yes |
| Suitable for oil |
Yes |
| Supply voltage |
600 V |
| Electrical connection |
Cable screw gland |
| Customization |
Standard trip/reset settings |
| Contact block modification |
2 circuit-SPST NC (non-inductive: 5 A, 240V/3 A, 600V/control circuit rating: AC-125 VA, 24…600V/DC-57.5 VA, 115…230V note: minimum specified differential value approximately doubles) |
| Width |
107 mm |
| Depth |
138.2 mm |
| Height |
260.4 mm |
| Shipping weight, approx |
10 lb |
| Line pressure, max |
190 psi |
| Occasional surge pressures, max |
210 psi |
| Adjustable differential |
1 psi |
| Adjustable operating range |
2 to 80 psi |
| Pressure connection |
1/4 inch N.P.T.F. internal pipe thread or 3/8 inch N.P.S.F. internal pipe connection (836-C1 and 836-C1A only) |
| Ingress rating |
NEMA Type 4 & 13/7 & 9 (Type 4 & 13 combined metallic aluminum) |
| Operating temperature |
-22 °F |
| Storage temperature |
-22 °F |
