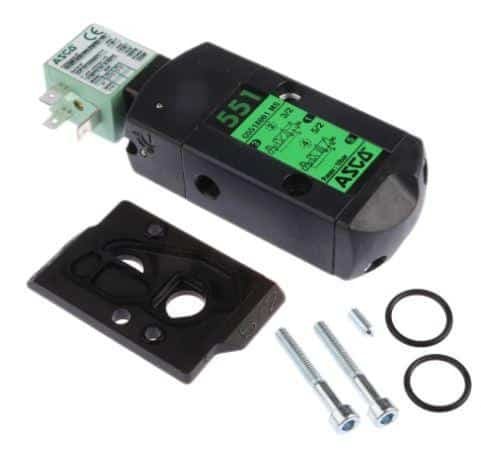

Emerson G551A001MS Solenoid Valve
Emerson G551A001MS Solenoid Valve
- A solenoid valve is an electromechanical device use to control the flow of gases or liquids in a system. It operates by using an electromagnetic coil to open or close a valve, allowing or blocking the flow of the fluid. Solenoid valves are widely use in various applications across industries due to their reliability, quick response times, and precise control.
Product Specification:
| Function | 3/2, 5/2 |
| Connection Port Thread | G 1/4 |
| Actuation Type | Pilot/Spring |
| Manufacturer Series | 551 |
| Mounting Style | NAMUR |
| Solenoid Voltage | 230V ac |
| Solenoid Fitted | Yes |
| Body Material | Aluminium |
| Maximum Flow Rate | 10L/min |
| Solenoid Power Consumption | 3.5 (Hold) VA, 6 (Inrush) VA |
| Minimum Operating Pressure | 2bar |
| Thread Size | 1/4in |
| Maximum Operating Temperature | +60°C |
| Maximum Operating Pressure | 10bar |
| Minimum Operating Temperature | -25°C |
| Thread Standard | G |
