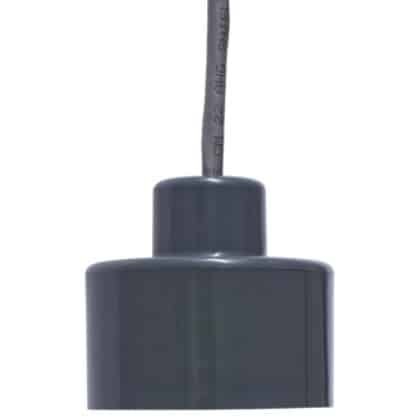

Endress+Hauser CUS71D-AA2A1 Ultrasonic Interface Sensor
Endress+Hauser CUS71D-AA2A1 Ultrasonic Interface Sensor
Product Description :
- It is a non-contact sensor used to detect and measure the interface between two different media, usually liquid-liquid (e.g., oil and water) or liquid-solid boundaries (e.g., sludge in a tank). It uses ultrasonic waves to determine the level or thickness of the interface.
- The sensor emits ultrasonic pulses toward the surface.When the pulse hits a change in density (like the interface between oil and water), part of the signal is reflected back.The sensor calculates the distance to the interface based on the time of flight of the echo.
Product Specification :
-
Measuring range –0.3 to 10 m (1 to 32 ft)
-
Measuring principle –Ultrasonic return-time measurement
-
Material-Sensor: ABS and epoxy resin/Wiper: EPDM/Housing: Polyamide
-
DimensionDiameter: 74 mm(2.9 inch)/Lenght standard sensor: 68 mm (2.7 inch)/Lenght wiper sensor: 135 mm (5.3 inch)
