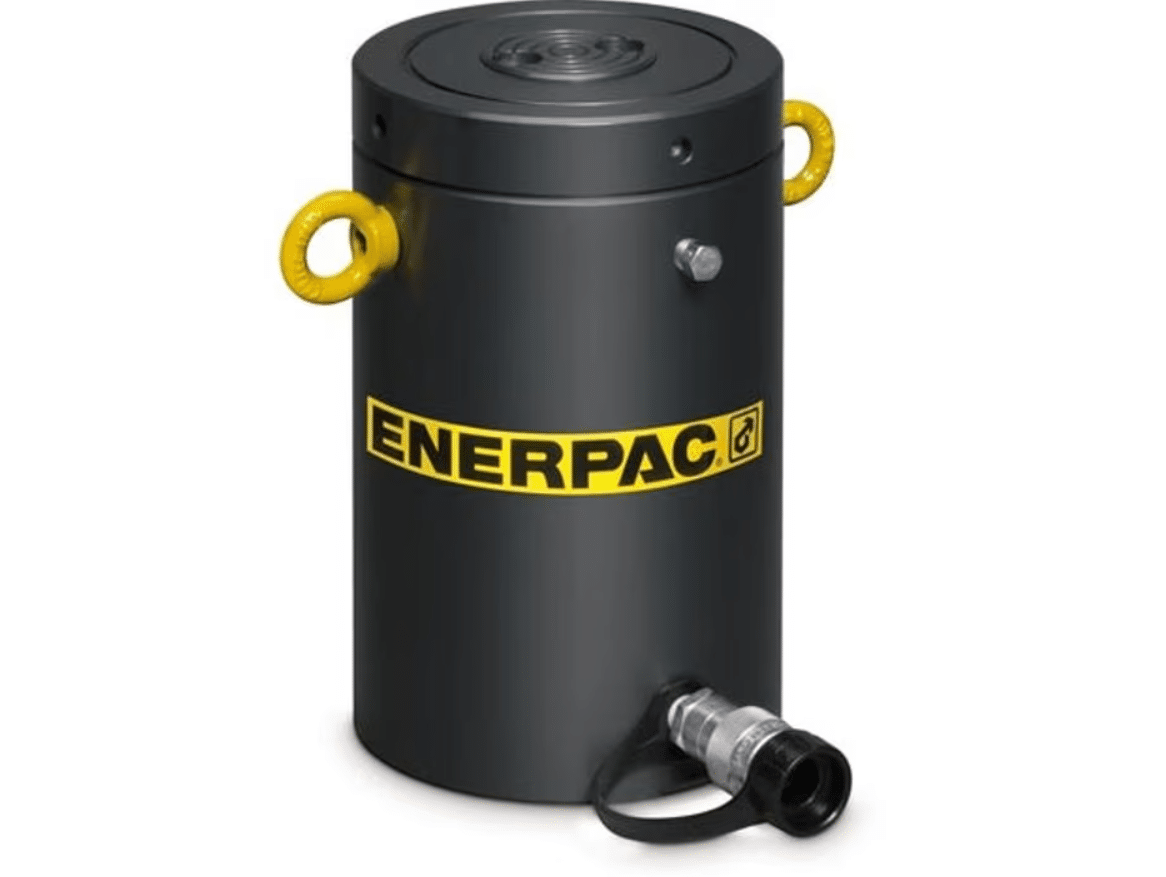

Enerpac CLL1002 Hydraulic Cylinder
Enerpac CLL1002 Hydraulic Cylinder
Product Description :
- It feature a lock nut to provide secure mechanical load holding for extended periods. These single-acting load return cylinders contain fewer parts than other types making them simple to use and maintain.
- They are equipped with numerous special features to ensure the durability, safety, and performance needed for large-scale construction projects.
-
The Hydraulic Cylinder is a mechanical actuator that converts hydraulic energy into linear motion and force. It is widely used to lift, push, pull, or move heavy loads in construction machinery, industrial equipment, and mobile applications.
-
Manufactured from high-quality steel or alloy materials, hydraulic cylinders feature precision-engineered pistons, rods, and seals to ensure durability, leak-free operation, and reliable performance under high pressure. They are designed to withstand heavy loads, harsh environments, and continuous operation.
Product Specification :
- Safe mechanical load holding for extended periods
- Low friction lock nut spins easily, saving time and effort
- Load return design – simple to use and maintain
- Nitrocarburized surface resists side-loading and cyclic wear
- Withstands 10% side-load up to 90% of maximum stroke
- Overflow port as stroke limiter – prevents plunger blow-out
- Weather protected, inside and out
- Replaceable bearings support the plunger throughout the stroke
- Certified lifting eyes
- Base mounting holes included as standard.
- Maximum working pressure up to 10,000 psi (700 bar).
- Maximum Operating Pressure (psi) –10,000
- Capacity Class (tonnage) – 100
- Maximum Cylinder Capacity Advance (short tons) – 113
- Stroke (in) –1.97
- Collapsed Height A (in) –7.36
- Extended Height B (in) –9.33
- Return Type- Single-Acting, Load Return
- Plunger Type- Solid
- Material- Steel
- Cylinder Effective Area Advance (in2)- 22.19
- Oil Capacity Advance (in3)-43.67
- Sideload Resistance of Maximum Capacity (percentage)- 10%
- Surface Treatment- Nitride
