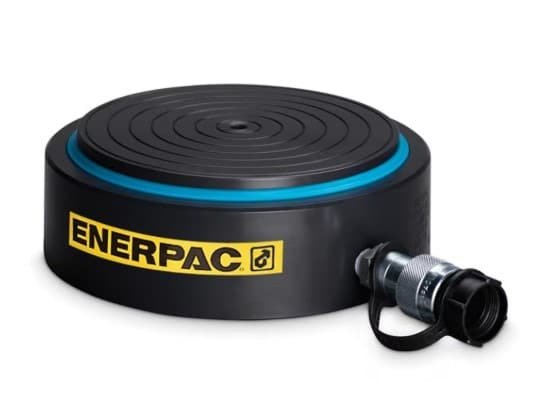

Enerpac CUSP10 Ultra Flat Hydraulic Cylinder
Enerpac CUSP10 Ultra Flat Hydraulic Cylinder
Product Description :
- It is a compact, high-force hydraulic actuator designed to fit in tight or limited space applications where traditional cylinders are too tall or bulky.
- It is a type of single-acting or double-acting hydraulic cylinder with a very short collapsed height relative to its stroke. These cylinders are capable of generating extremely high forces over short strokes, making them ideal for heavy lifting, aligning, or positioning jobs where clearance is minimal.
Product Specification :
Maximum Operating Pressure (psi)- 10,150
Capacity Class (tonnage)- 10
Maximum Cylinder Capacity Advance (short tons)- 10.9
Stroke (in)- 0.26
Collapsed Height A (in)- 1.40
Extended Height B (in)- 1.66
Return Type- Single-Acting, Load Return
Plunger Type- Solid
Material- Steel
Cylinder Effective Area Advance (in2)- 2.15
Oil Capacity Advance (in3)- 0.57
Tilted Stroke (in)- 0.24
Tilting Degrees- 2
