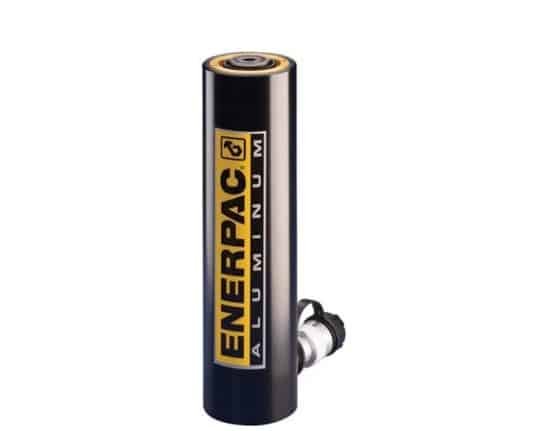

Enerpac RAC208 Aluminium Hydraulic Cylinder
Enerpac RAC208 Aluminium Hydraulic Cylinder
Product Description :
- It is a type of hydraulic actuator made with an aluminium body instead of traditional steel or cast iron. These cylinders use hydraulic pressure (from oil or fluid) to generate linear motion and force.
- A hydraulic cylinder converts hydraulic energy (fluid pressure) into mechanical force to move a load in a straight line.Aluminium is significantly lighter than steel, making these cylinders ideal for weight-sensitive applications.
Product Specification :
Maximum Operating Pressure (psi)- 10,000
Capacity Class (tonnage)- 20
Maximum Cylinder Capacity Advance (short tons)- 24.2
Stroke (in)- 7.87
Collapsed Height A (in)- 12.76
Extended Height B (in)- 20.64
Return Type- Single-Acting, Spring Return
Plunger Type- Solid
Material- Aluminum
Cylinder Effective Area Advance (in2)- 4.83
Oil Capacity Advance (in3)- 38.01
Surface Treatment- Anodized
