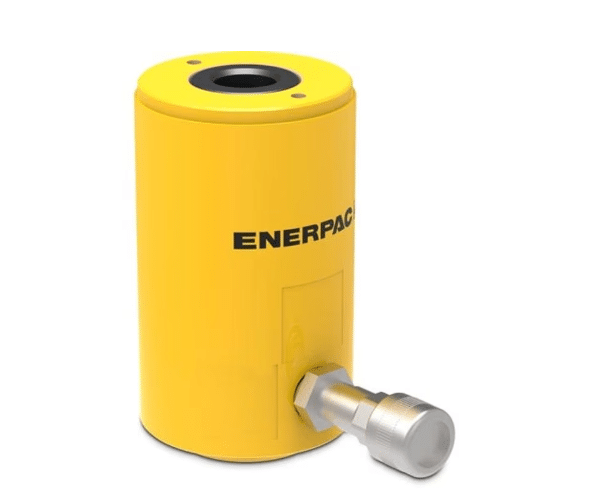

Enerpac RCH121 Hollow Plunger Hydraulic Cylinder
Enerpac RCH121 Hollow Plunger Hydraulic Cylinder
Product Description :
- It is a type of hydraulic cylinder designed with a hollow or tubular plunger (also known as the rod or piston) at its center. This cylinder operates using hydraulic fluid to generate force and is used in various applications where a long, slender stroke is needed while providing the advantage of an internal bore that can be utilized for other purposes, such as accommodating a pull or holding other components inside the plunger.
- They are built to withstand tough conditions and demanding applications. These have a baked enamel finish to resist corrosion. The center hole design has collar threads for easy fixturing.
- The Hollow Plunger Hydraulic Cylinder is a specialized hydraulic actuator featuring a hollow plunger rod design that allows for the passage of cables, rods, or other components through its center. This design enables integration in applications requiring simultaneous pushing and passing of materials or signals. Built for high-pressure hydraulic systems, it offers precise, powerful linear motion with excellent durability and corrosion resistance. Ideal for complex industrial machinery, automation, and heavy equipment where space optimization and multi-functionality are critical.
Product Specification :
- Maximum Operating Pressure (psi)-10,000
- Capacity Class (tonnage)-12
- Maximum Cylinder Capacity Advance (short tons)-13.8
- Stroke (in)-1.63
- Collapsed Height A (in)-4.75
- Extended Height B (in)-6.38
- Center Hole Diameter Y (in)- 0.77
- Return Type- Single-Acting, Spring Return
- Plunger Type- Hollow
- Material- Steel
- Cylinder Effective Area Advance (in2)- 2.76
- Oil Capacity Advance (in3)- 4.49
- Surface Treatment- Paint
