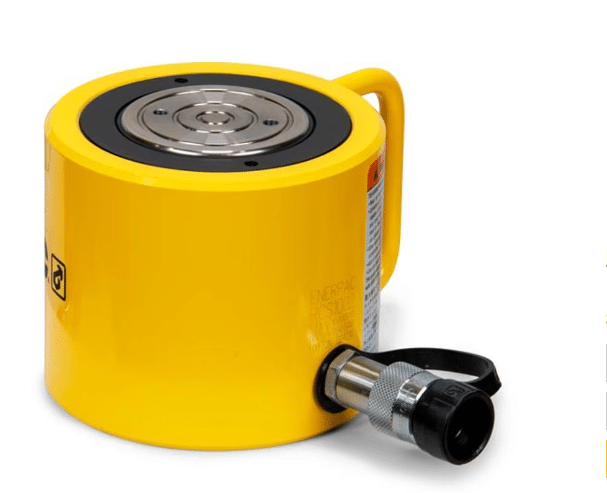

Enerpac RCS1002 Hydraulic Cylinder
Enerpac RCS1002 Hydraulic Cylinder
Product Description :
- They provide superior durability, safety, and quality in a compact and convenient format. They’re the perfect choice for general lifting and production applications where space is limited.
- Two through mounting holes in each cylinder make it easy to clamp onto machinery and other fixtures.
-
A Hydraulic Cylinder is a mechanical actuator that uses hydraulic pressure to generate linear motion and force. It converts hydraulic energy into mechanical energy, enabling the controlled movement of machinery components such as lifting, pushing, pulling, or pressing.
-
Constructed with a cylinder barrel, piston, piston rod, and seals, hydraulic cylinders are built for strength, durability, and precision. They are widely used in construction equipment, manufacturing machinery, agricultural systems, and industrial applications, where reliable force and motion control are essential.
Product Specification :
- Maximum Operating Pressure (psi)- 10,000
- Capacity Class (tonnage)- 100
- Maximum Cylinder Capacity Advance (short tons)- 98.1
- Stroke (in)- 2.25
- Collapsed Height A (in)- 5.56
- Extended Height B (in)- 7.81
- Return Type- Single-Acting, Spring Return
- Plunger Type- Solid
- Material- Steel
- Cylinder Effective Area Advance (in2)-Â 19.63
- Oil Capacity Advance (in3)- 44.18
- Surface Treatment-Paint
