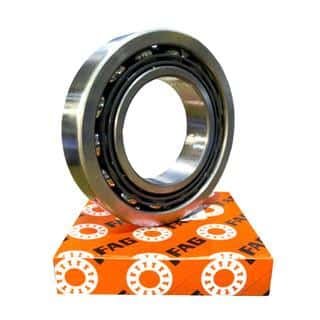

FAG 7306BTVPFAG Angular Contact Bearing
FAG 7306BTVPFAG Angular Contact Bearing
Product Description
- An angular contact bearing is a type of rolling-element bearing designed to support axial (thrust) loads in addition to radial (rotational) loads.
- The key feature of angular contact bearings is the contact angle formed between the ball (or rolling element) and the raceways. This angle is created by the design of the bearing and determines the bearing’s load capacity, its speed capabilities, and how it handles forces.
- Angular contact bearings are commonly used in applications where both axial and radial forces are present, such as in machine tools, automotive applications, and industrial equipment.
Product Specification :
Inside Diameter (mm): 30mm
Outside Diameter (mm): 72mm
Width (Mm): 19mm
Cage Type: Plastic
Seals or Shields: Open Type
Clearance: Standard
Dynamic Load Rating (kn): 32.5
Static Load Rating (kn): 20
Fatigue Load Rating (kn): 1.5
Reference Speed Rating (R/Min): 10000
Limiting Speed Rating (R/Min): 11000
