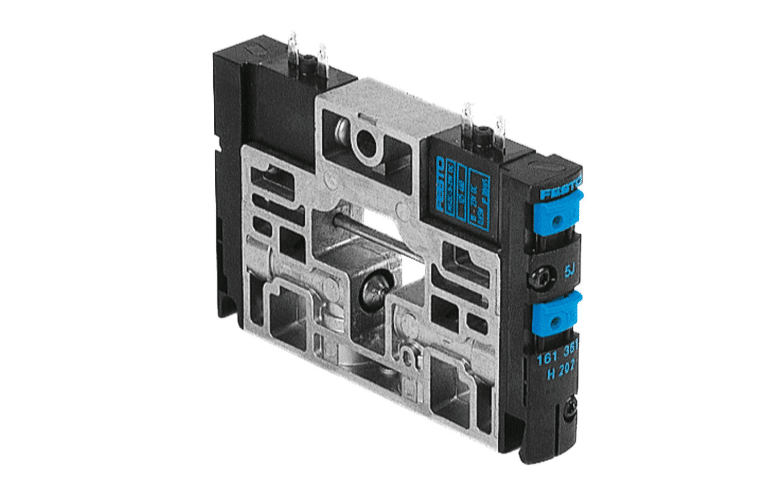

Festo 161362 Solenoid Valve
Festo 161362 Solenoid Valve
Product Description :
- It is an electromechanical device used to control the flow of fluids (liquids or gases) in a system. It combines a solenoid (an electromagnetic coil) with a valve mechanism.
- The solenoid consists of a coil of wire through which an electric current flows. When energized, the coil creates a magnetic field. The valve mechanism opens or closes the flow path, allowing or stopping the flow of fluid based on the solenoid’s position.
- Provides accurate and reliable control over fluid flow with electronic activation. They are crucial components in a wide range of systems where precise and reliable fluid control is required. They integrate electromagnetic actuation with valve mechanisms to offer efficient and automated control of fluid flow.
- A Solenoid Valve is an electromechanically operated valve used to control the flow of liquids or gases in industrial and commercial systems. It operates by using an electromagnetic solenoid coil, which, when energized, moves a plunger or armature to open or close the valve.
Product Specification :
- Standard nominal flow rate- 800 l/min
- Pneumatic working port- G1/8
- Operating voltage- 24V DC
- Operating pressure- -0.09 MPa … 1 MPa
- Operating pressure- -0.9 bar … 10 bar
- Structural design- Piston gate valve
- Reset method- Pneumatic spring
- Degree of protection- IP65
- Nominal width- 6 mm
- Exhaust air function- Without flow control option
- Sealing principle- Soft
- Mounting position- Any
- Manual overrideDetenting-Â Non-detenting
- Type of control- Pilot-controlled
- Pilot air supply port- External Internal
- Flow direction- Non-reversible
