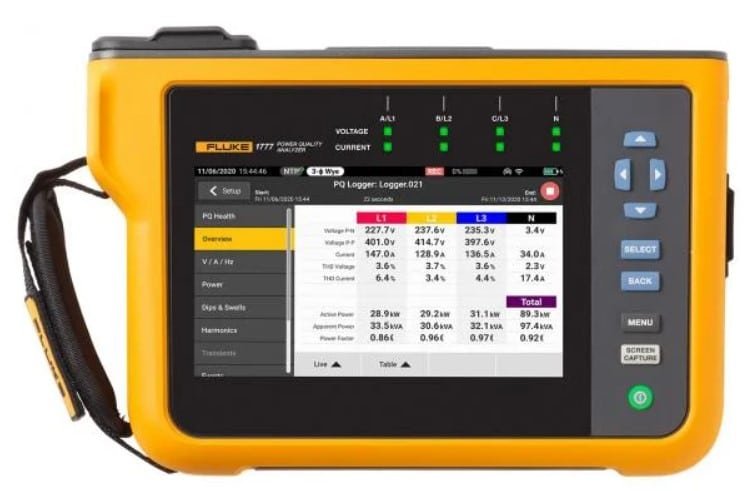

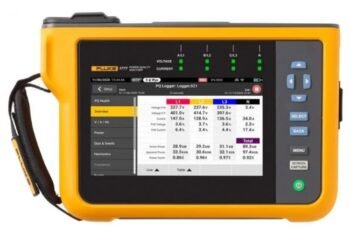

Fluke 1770 Three-Phase Power Quality Analyzers
Fluke 1770 Three-Phase Power Quality Analyzers
Product Description :
- It is an electronic diagnostic tool used to measure, monitor, and analyze the quality of electrical power in three-phase power systems. These systems are commonly used in industrial, commercial, and utility applications.Power quality refers to the stability, cleanliness, and consistency of voltage and current supplied by the power system.
Product Specification :
| Number of inputs | 4 inputs, 3 phases and neutral referenced to PE (5 connectors) |
| Measurement category | 1000 V CAT III / 600 V CAT IV |
| Maximum input voltage | 1000 V rms / 1000 V dc (1700 Vpk) |
| Nominal voltage range | Wye and single phase: variable (50 V – 1000 V) Delta: Variable (100 V – 1000 V) IEC 61000-4-30 Class A compliance for the nominal voltages (Vdin) 100 V – 690 V |
| Input impedance | 10 MΩ between P-P and P-N, 5 MΩ between P-PE and N-PE |
| Bandwidth | DC to 30 kHz for PQ measurements, excluding transients |
| Resolution | 24-bit synchronous sampling |
| Sampling frequency | 80 kS/s at 50/60 Hz |
| Scaling | 1:1, variable for use of potential transformers |
