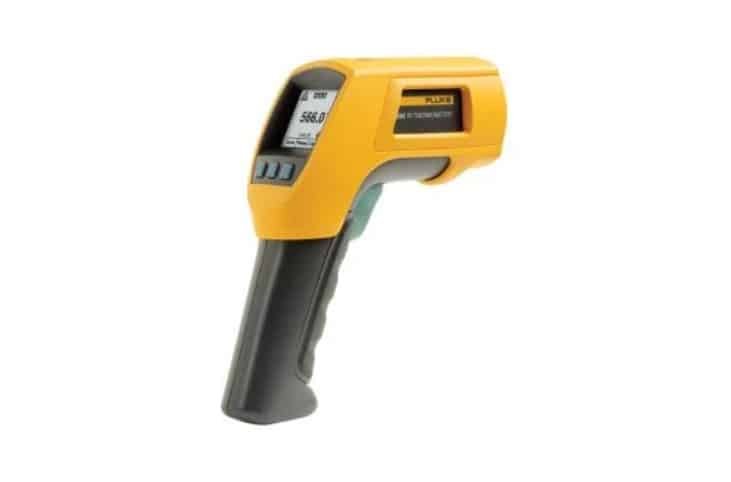

Fluke 566 Infrared Thermometer
Fluke 566 Infrared Thermometer
Product Description :
- It is a non-contact device used to measure the surface temperature of an object by detecting its infrared radiation (heat). It is a highly useful tool for quickly and safely gauging temperature in situations where direct contact is impractical, dangerous, or impossible. These thermometers are widely used in a variety of applications, from industrial settings to home maintenance.
Product Specifications:
| Infrared temperature range | -40°C to 650°C (-40°F to 1202°F) | |
| Infrared accuracy | < 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); | |
| > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater | ||
| Display resolution | 0.1°C / 0.1°F | |
| Infrared spectral response | 8 µm to 14 µm | |
| Infrared response time | < 500 msec | |
| Thermocouple Type-K input temperature range | -270°C to 1372°C (-454°F to 2501°F) | |
| Thermocouple Type-K input accuracy | -270°C to -40°C | ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) |
| -40°C to 1372°C | ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater | |
| D:S (distance to measurement spot size) | 30:1 | |
| Laser sighting | Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm | |
