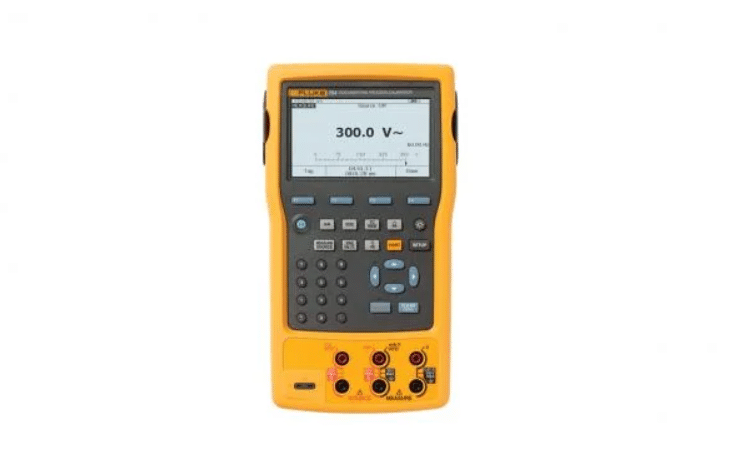

Fluke 754 Process Calibrator-HART
Fluke 754 Process Calibrator-HART
Product Description :
- It is a power multifunction documenting calibrator that you can use to download procedures, lists, and instructions created with software, or upload data for printing, archiving, and analysis. The powerful built-in HART interface is capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.
- It sources, simulates and measures pressure, temperature, and electrical signals with one rugged, hand-held device.
- Â It does so many different tasks, so quickly and so well, it’s the only process calibrator you need to carry.
-
The Process Calibrator with HART (Highway Addressable Remote Transducer) capability is a precision instrument designed to measure, simulate, and calibrate process instrumentation signals in industrial systems. It allows technicians to accurately verify and adjust transmitters, sensors, and control devices for parameters such as pressure, temperature, current, and voltage, while also communicating with HART-enabled smart devices for advanced diagnostics and configuration.
Product Specification :
- Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms
- Creates and runs automated as-found/as-left procedures to satisfy quality programs or regulations, and records and documents results
- Holds up to a full week of downloaded procedures and calibration results
- Features a bright white dual display for reading both sourced and measured parameters simultaneously
- Size : 136 x 245 x 63mm (5.4 x 9.6 x 2.5 in )
