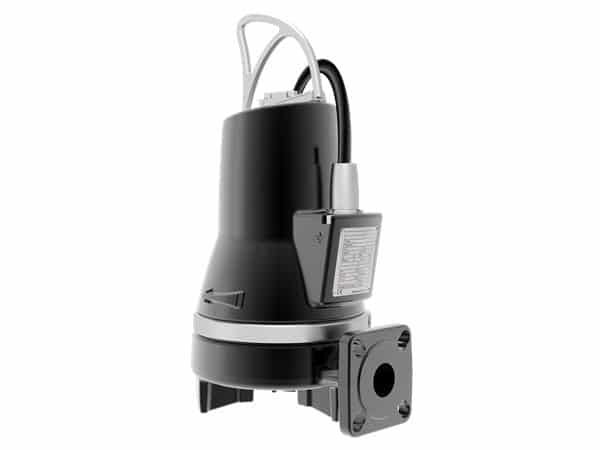

Grundfos 96075910 Centrifugal Pump
Grundfos 96075910 Centrifugal Pump
Product Description :
- It is a type of pump that uses rotational energy to move fluids. The core component of a centrifugal pump is the impeller, which is a rotating disk with blades. When the impeller spins, it imparts kinetic energy to the fluid, accelerating it outward from the center of the pump.
- After the fluid exits the impeller, it enters a volute or diffuser. This component converts the kinetic energy of the fluid into pressure energy, helping to move the fluid through the discharge pipe.
- The Centrifugal Pump is a widely used mechanical device designed to move liquids by converting rotational kinetic energy to hydrodynamic energy. Utilizing an impeller, it accelerates fluid outward from the pump’s center, creating flow and pressure. Known for its simplicity, reliability, and efficiency, this pump is ideal for a broad range of industrial, commercial, and agricultural applications.
Product Specification :
- Power input – P1- 2.1 kW
- Rated power – P2- 1.5 kW
- Mains frequency- 50 Hz
- Rated voltage-3 x 400-415 V
- Voltage tolerance- +6/-10 %
- Max starts per hour- 30
- Rated current- 4 A
- Starting current- 21 A
- Rated current at no load- 2.2 A
- Cos phi – power factor- 0.87
- Cos phi – p.f. at 3/4 load- 0.79
- Cos phi – p.f. at 1/2 load- 0.66
- Rated speed- 2700 rpm
- Moment of inertia- 0.004 kg m²
- Motor efficiency at full load- 72 %
- Motor efficiency at 3/4 load- 73 %
- Motor efficiency at 1/2 load- 69 %
- Number of poles- 2
