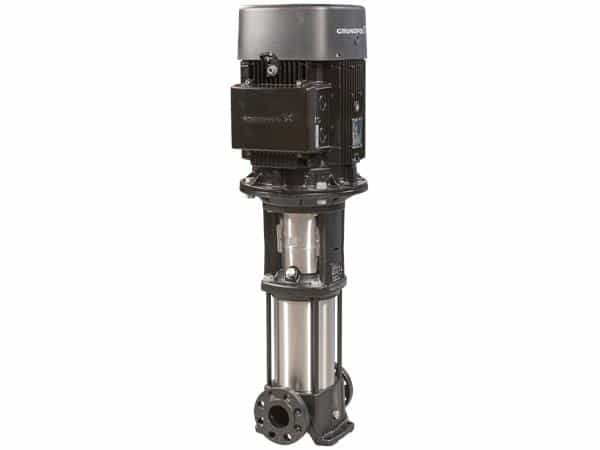

Grundfos 96503409 Vertical Centrifugal Pump
Grundfos 96503409 Vertical Centrifugal Pump
Product Description :
- It is a type of pump that utilizes centrifugal force to move fluids, typically water or other liquids. It has a vertically oriented shaft and impeller, unlike horizontal centrifugal pumps which are arranged with a horizontal shaft.
- The rotating part that imparts energy to the fluid, creating centrifugal force to move it.It transfers mechanical energy from the motor to the impeller. In a vertical centrifugal pump, the shaft is oriented vertically.
- The motor and pump shaft are placed vertically, which is useful in space-constrained environments where floor space is limited.
Product Specification :
Pump speed on which pump data are based- 3526 rpm
Rated flow- 12.1 m³/h
Rated head- 107.1 m
Maximum head- 133 m
Stages- 9
Impellers- 9
Number of reduced-diameter impellers- 0
Low NPSH- N
Pump orientation-Vertical
