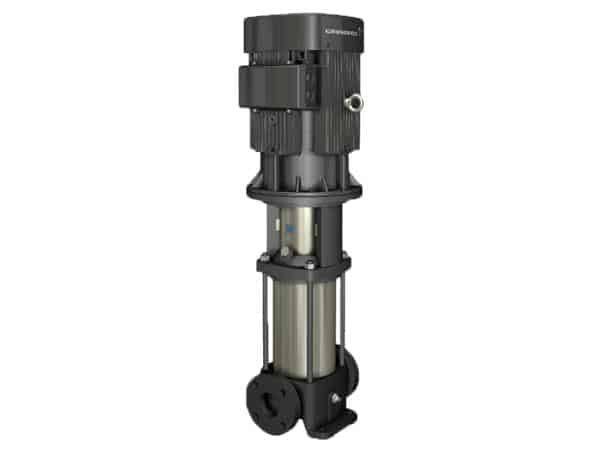

Grundfos 96772498 Vertical Centrifugal Pump
Grundfos 96772498 Vertical Centrifugal Pump
Product Description :
- It is a type of pump that utilizes centrifugal force to move fluids, typically water or other liquids. It has a vertically oriented shaft and impeller, unlike horizontal centrifugal pumps which are arranged with a horizontal shaft.
- The rotating part that imparts energy to the fluid, creating centrifugal force to move it.It transfers mechanical energy from the motor to the impeller. In a vertical centrifugal pump, the shaft is oriented vertically.
- The motor and pump shaft are placed vertically, which is useful in space-constrained environments where floor space is limited.
Product Specification :
| Motor standard: | IEC | |
| Motor type: | 132SC | |
| Rated power – P2: | 5.5 kW | |
| Power (P2) required by pump: | 5.5 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-415D V | |
| Rated current: | 11 A | |
| Starting current: | 1080-1180 % | |
| Cos phi – power factor: | 0.87-0.82 | |
| Rated speed: | 2920-2940 rpm |
