Hand Hydraulic Crimping Tool HT400B

HT400B: Hand Hydraulic Crimping Tool

Features:

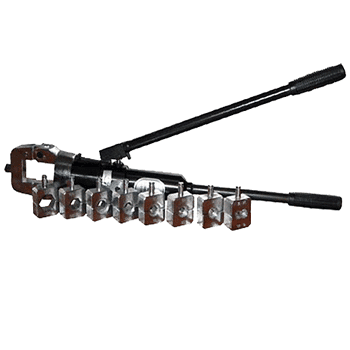

HT – 400 B HAND HYDRAULIC CRIMPING TOOL

Product Description:

Hand hydraulic crimping tool (concealed) for crimping non insulated  terminals / Lugs both light and heavy duty.The Tool has 17 tons output & weighs 14 kgs, head 9.5kgs. Available range from 16 MM² to 400 MM² giving hexagonal crimping shape. the tool is provided with nine sets of hexagonal dies as per DIN / JIS standards – 16 – 25, 35, 50 – 70, 95, 120, 150, 185 – 240, 300 and 400 SQ MM ( 9 sets of hexagonal dies ) The entire tool is set in a easy transportable acrylic carrying case. The tool has automatic cutoff system for perfect crimping which avoids excessive over crimping of joints. Easy and instant pressure releasing system. Head sleek to accommodate entry of cable at remote working areas.

Capacity:

MIN. :- 16 MM² / MAX :- 400 MM²
