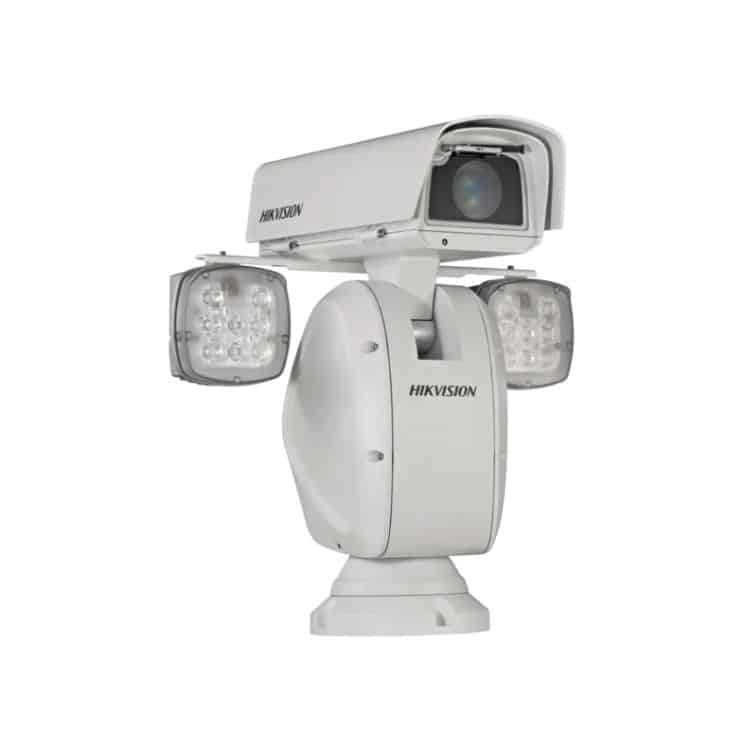

Hikvision DS-2DY9240IX-A(T5) IR Network Positioning System

Hikvision DS-2DY9240IX-A(T5) IR Network Positioning System

Hikvision DS-2DY9240IX-A(T5) IR Network Positioning System

Product Description:

• An IR Network Positioning System is an advanced infrared-based tracking and positioning solution designed to accurately determine the real-time location of assets, equipment, or personnel within a defined area. Using infrared (IR) signals and a network of sensors or receivers, the system delivers high-precision positioning, reliable coverage, and secure data transmission, even in complex industrial environments.
• Engineered with high-accuracy IR transmitters, receivers, and intelligent network controllers, the IR Network Positioning System provides fast response, low interference, and consistent location data. It is widely used in industrial facilities, offshore platforms, warehouses, hospitals, and safety-critical environments, where accurate positioning, monitoring, and operational efficiency are essential.
• The Hikvision DS-2DY9240IX-A(T5) IR Network Positioning System is a high-performance PTZ surveillance solution designed for large-area security monitoring, critical infrastructure protection, and long-range video surveillance. Built with advanced imaging technology, the Hikvision DS-2DY9240IX-A(T5) IR Network Positioning System delivers exceptional image clarity, precise positioning, and reliable performance in demanding environments.
• Equipped with a high-resolution image sensor and powerful optical zoom, the Hikvision DS-2DY9240IX-A(T5) IR Network Positioning System enables accurate target tracking and detailed monitoring over long distances. Its integrated infrared (IR) illumination ensures clear visibility in complete darkness, making it ideal for 24/7 outdoor surveillance.

Product Specification:

• • Image Sensor1/1.8＂ progressive scan CMOS
  • Min. Illuminationcolor: 0.005Lux @ (F1.2，AGC ON);B/W: 0.001Lux@(F1.2，AGC ON);0 Lux with IR
  • Shutter Speed1/1s ~ 1/30,000s
  • Focusauto;semi-auto;manual
  • Day & NightICR
  • BLCyes
  • WDR140 dB WDR
  • HLCyes
  • 3D DNRyes
  • EISYes. Built-in gyroscope to improve EIS performance.
  • Regional Exposureyes
  • Regional Focusyes
  • White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
  • Digital Zoom16x
  • Optical Zoom40 ×
  • Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
  • General Functionmirror, password protection, watermark, IP address filter
• Power::24 VAC ± 25%, max. 100 W
• Vandal-Proof Alarm: yes
• Operating Conditions: Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
• Wiper: Yes. Rain-sensing auto control
• Material: Aluminum alloy ADC12
• Dimensions: 460 mm × 390 mm × 491 mm (18.11″ × 15.35″ × 19.33″)
• Alarm Input7 alarm inputs
• Alarm Output2 alarm outputs
• Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output1 audio output, line level, impedance: 600 Ω
• Movement Range (Pan)360°
• Movement Range (Tilt)+40° to -90°
• Pan Speedpan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
• Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
• Proportional Zoomyes
• Presets300
• Patrol Scan8 patrols
• Pattern Scan4 pattern scans
• Power-Off Memoryyes
• 9-inch 2 MP 40X DarkFighter IR Network Positioning System. 1/1.8″ progressive scan CMOS; Up to 1920 × 1080 resolution; Min. illumination:Color: 0.005 Lux9-inch 2 MP 40X DarkFighter IR Network Positioning System DS2DY9240IXAT5
