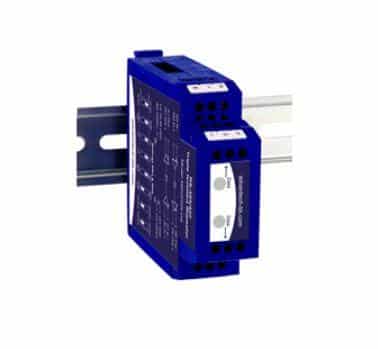

RS-422/485 Isolated Repeator, high speed, DIN Rail 4850PDR
Product Description:
Model BB-485OPDR-HS is a high speed, optically isolated RS-422/485 repeater that supports data rates up to 1.5 Mbps. Isolation – Model BB-485OPDR-HS provides 2 kV digital isolation with 8 kV air ESD protection and 600 W transient voltage suppression on the data lines. Range Extension – Model BB-485OPDR-HS can be used to extend the range of a network up to 1.2 km (4000 ft), depending on data rates, and to add additional nodes. 2-wire RS-485, 4-wire RS-485 and RS-422 are supported. Data signals and the power inputs connect to built-in terminal blocks. Power – The repeater operates on externally sourced 10 to 30 VDC power (power supply is required, not included, sold separately). Enclosure – The enclosure has a DIN rail mount enclosure that is designed to easily fit on standard 35mm DIN rail.
Product Specification:
- Extends RS-422/RS-485 an extra 1.2 km (4000 ft)
- 2 kV Isolation, and IEC ESD protections
- Data rate: up to 1.5 Mbps
- -40 to +80°C wide operating temperature
- DIN rail mount (panel mount with optional brackets)
- 10 – 30 Vdc power supply required, not included, sold separately
