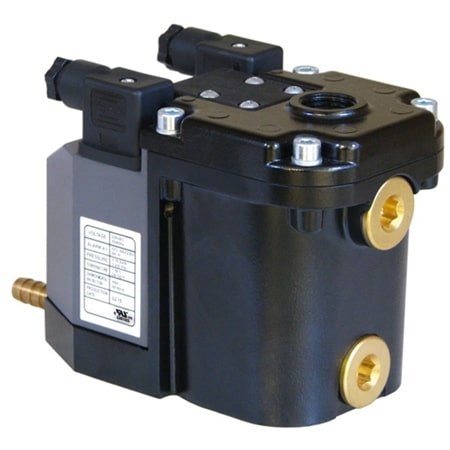

Jorc 3623-U1 Automatic Drain Valve

Jorc 3623-U1 Automatic Drain Valve

Jorc 3623-U1 Automatic Drain Valve

Product Description :

• It is a device used to remove accumulated condensate or liquids from various systems, such as compressed air systems, refrigeration units, and hydraulic systems, without the need for manual intervention. These valves are designed to ensure that condensate is removed regularly and efficiently, preventing system damage and maintaining optimal performance.
• The valve opens and closes automatically based on predefined conditions, such as time intervals or fluid levels.Includes a mechanism (solenoid valve or diaphragm) that opens to expel condensate when triggered.
• It is a valuable component for maintaining the efficiency and longevity of systems that handle condensate

Product Specification :

• Brand : Jorc
• Part Number : 3623-U1
• Dimensions- 4.48″ Height x 3.431″ Width x 7.046″ Depth
• Max Compressor Capacity- 3500 CFM
• Valve Opening- 4 mm
• Valve Seals- FPM
• Inlet Height- 4.5″ (top), 2.9″ & 0.6″ (side)
• Ambient Temperature- 34 F to 122 F (1 C to 50 C)
