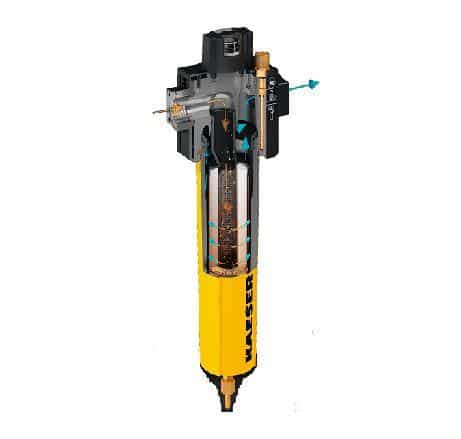

Kaeser F250KA Vapor Adsorbers
Kaeser F250KA Vapor Adsorbers
Product Description:
- Vapor adsorbers are devices design to remove or adsorb vapors, gases, or odors from the air. The term “adsorption” refers to the process of molecules adhering to the surface of a solid or liquid material. Activated carbon is a common material use for adsorption in vapor adsorbers due to its high surface area and ability to attract and hold various gases and vapors.
- The Kaeser F250KA Vapor Adsorbers are advanced filtration solutions designed to remove oil vapors, hydrocarbons, and odor-causing contaminants from compressed air systems. Engineered by Kaeser, these Kaeser F250KA Vapor Adsorbers ensure ultra-clean compressed air, making them ideal for industries that require high air purity standards such as manufacturing, food processing, pharmaceuticals, and electronics.
- Built with high-efficiency activated carbon adsorption technology, the Kaeser F250KA Vapor Adsorbers effectively capture residual oil vapors that may pass through standard compressed air filters. This process significantly improves air quality, protects downstream equipment, and ensures compliance with strict air purity requirements.
Product Specification:
| Connection Size | 2 1/2 or 3 NPTF |
| Maximum Working Pressure | 232 psig |
| Width | 11.5 in |
| Height | 34.8 in |
| Weight | 40 lb |
| Standard Features of Filters | Ball Valve |
| Model Type | Modular Type Housing |
| Liquid Removal | 0 % |
| Maximum Liquid Loading | 0 ppm w/w |
| Solid Particle Removal | .5 µ |
| Vapor Carry-Over | 0.003 ppm w/w |
| Pressure Drop – Dry | .5 psi |
| Maximum Inlet Temperature | 150 ºF |
| Replacement Element Kit | 901570.0 |
