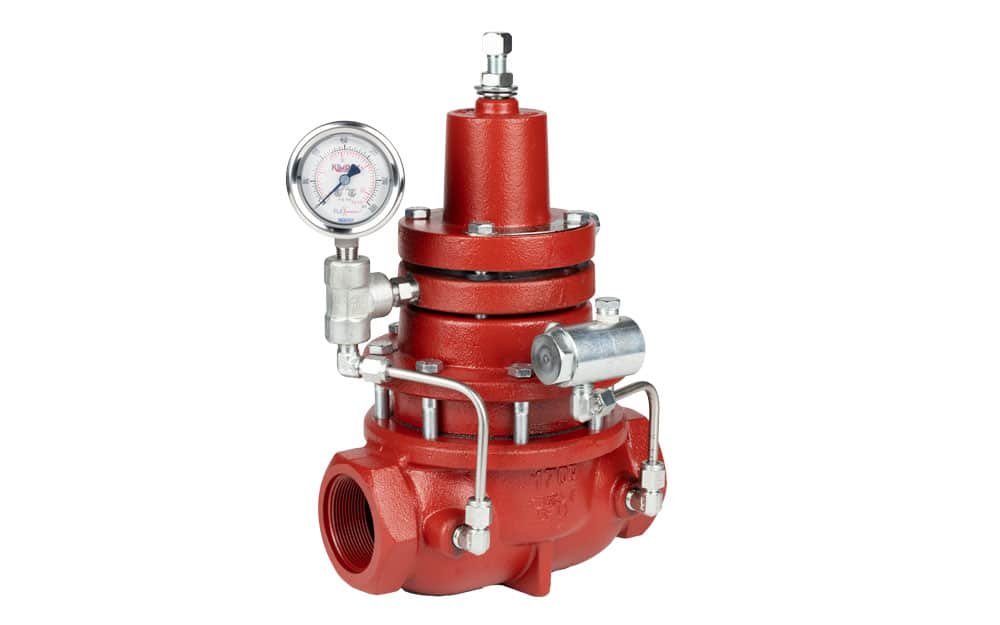

Kimray ABU 230SGTPRD Pressure Regulator
Kimray ABU 230SGTPRD Pressure Regulator
Product Description :
- It is a device used to maintain a desired pressure level in a system by reducing the inlet pressure to a lower, specified outlet pressure. These regulators are commonly employed in various industries and applications where precise control of pressure is necessary, such as in gas distribution systems, water supply networks, pneumatic systems, and hydraulic systems.
- The regulator is installed in-line with the system, with the higher pressure fluid or gas entering through the inlet port.There is a sensing mechanism that detects the inlet pressure. This mechanism is often a diaphragm or piston assembly that reacts to changes in pressure.
- Featuring an adjustable set point, they are commonly used as suction control valves on compressors.These valves are classified as intermittent venting (non-bleed), and meet most producer’s emissions standards. Some models are available in a non-vent version.
Product Specification :
| onnection Size: | 2 “ |
| Connection Type: | Female NPT |
| Body Style: | Through Body |
| Body Material: | Cast Ductile |
| NACE MR0175: | Option Available |
| Trim Size: | 2 “ |
| Trim Type: | Equal Percentage |
| Leakage Class: | Class VI |
| Process Fluid: | Gas |
| Pilot Type: | Vent |
| Max Working Pressure: | 300 psig |
| Min Set Point Pressure: | 10 psig |
| Max Set Point Pressure: | 300 psig |
| Operation: | Pneumatic |
| Catalog Page: | 06:50.1 |
| Face-to-Face Length: | 8.5 “ |
