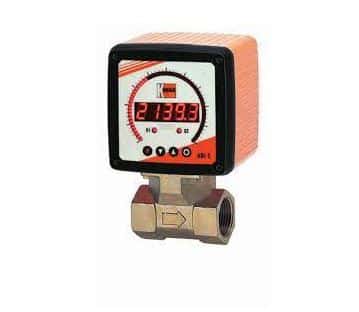

Kobold DRB1175 Flow Meter
Kobold DRB1175 Flow Meter
Product Description:
- They Are An Economical Yet Reliable Solution For Measuring Liquid Flows In Pipes Up To 3 Inches In Diameter. They Feature A PVDF Impeller Supported On A Ceramic Bearing System Which Provides An Exceptionally Long Life And Excellent Chemical Resistance Properties. They Are Available With Either Brass Or Stainless Steel Threaded Bodies.
- It Also Known As A Paddlewheel Sensor Or Turbine Flowmeter, Is A Type Of Flow Measurement Device Used To Monitor The Flow Rate Of Liquids, Typically In Pipes Or Conduits.
- This Device Operates On The Principle Of A Rotating Paddle Wheel Or Turbine Placed In The Path Of The Flowing Liquid. As The Liquid Flows Through The Pipe, It Causes The Paddle Wheel Or Turbine To Rotate, And The Rotational Speed Is Directly Proportional To The Flow Rate.
Product Specification:
- Measuring Ranges: 1.5…8 GPM to 15…200 GPM
- Measuring Accuracy: ± 3% of Full Scale
- Pmax: 250 PSIG
- Tmax: 176°F
- Connection: 1/2″ NPT…3″ NPT
- Material: Brass, Stainless Steel
- Output: Pulse, 4-20 mA, LED or LCD Display, Contacts
