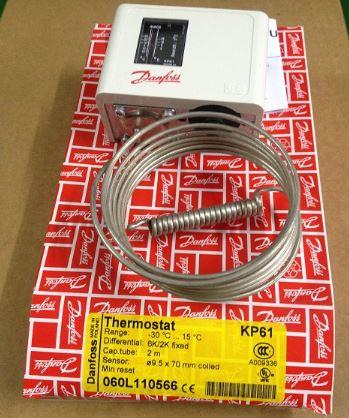

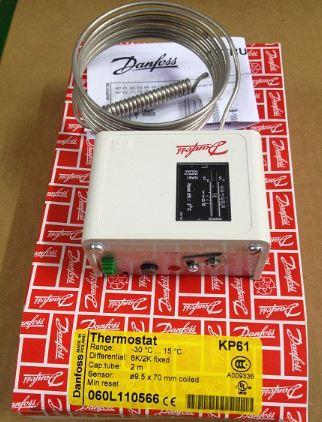

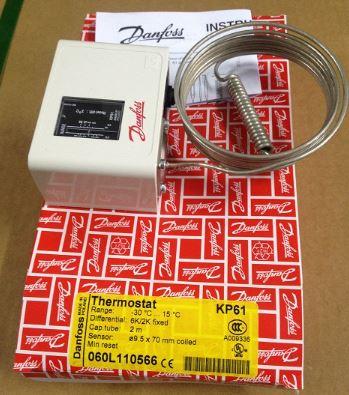

Danfoss KP61 060L11056 Thermostat
Danfoss KP61 060L11056 Thermostat
- A thermostat is a device that regulates temperature by maintaining it at a desired setpoint. It is commonly used in heating, ventilation, and air conditioning (HVAC) systems, as well as in various other applications where temperature control is essential. The primary function of a thermostat is to monitor the ambient temperature and activate or deactivate a heating or cooling system to maintain the desired temperature.
Product Specifications:
| Characteristic | Value |
| Type | KP61 |
| Weight | 0.360 Kg |
| Ambient temperature [°C] | -40 – 65 °C |
| Ambient temperature [°F] | -40 – 150°F |
| Ambient temperature range [°C] | -40 – 65 °C |
| Ambient temperature range [°F] | -40 – 150°F |
| Approval | CUL US, CCC |
| Capillary tube length [in] | 78 3/4 in. |
| Capillary tube length [mm] | 2.000 mm |
| Charge type | Vapor |
| Contact function | SPDT |
| Contact rating | AC1=16 A, 400 V |
| Contact rating | AC15=10 A, 400 V |
| Contact rating | AC3=16 A, 400 V |
| Contact rating | DC13=12 W, 230 V |
| Contact rating | LR=112 A, 400 V |
| Differential at max. range setting [K] | 2,0 K |
| Differential at min. range setting [K] | 6,0 K |
| Differential type | Fixed |
| EAN number | 5702428014526 |
| Enclosure rating | IP30 |
| Max. sensor temperature [°C] | 120 °C |
| Max. sensor temperature [°F] | 248,0 °F |
| Pack format | Multi pack |
| Product Design Class | B |
| Quantity per pack format | 32pc |
| Reset function | Min |
| Sensor size (diam. x L) [in] | 3/8 x 2 3/4 in. |
| Sensor size (diameter x length) [mm] | 9.5 x 70 mm |
| Sensor type | Remote air coil |
| Temperature range [°C] | -30 – 15 °C |
| Temperature range [°F] | -22 – 59 °F |
