Lovejoy 68514411085 Jaw Coupling Hub

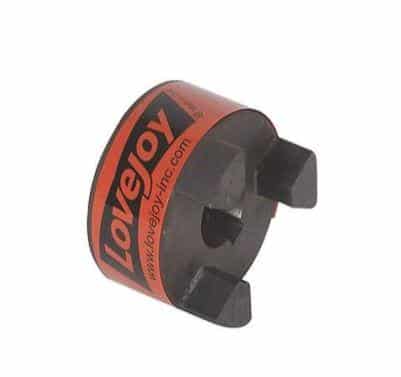

Lovejoy 68514411085 Jaw Coupling Hub
Product Description:
- A jaw coupling hub, also known as a jaw coupling spider or insert, is a component use in a jaw coupling assembly. Jaw couplings are mechanical devices design to transmit torque between two shafts while allowing for a degree of misalignment and vibration damping. The jaw coupling hub is a critical part of this assembly and serves as the connecting link between the input and output shafts.
- The Lovejoy 68514411085 Jaw Coupling Hub is a precision-engineered mechanical component designed for reliable torque transmission, vibration damping, and alignment compensation in rotating machinery. This high-performance jaw coupling hub is compatible with Lovejoy couplings and is ideal for motors, pumps, conveyors, gearboxes, and industrial equipment.
- Manufactured from high-strength steel or alloy materials, the Lovejoy 68514411085 Jaw Coupling Hub ensures long-lasting durability, wear resistance, and smooth operation under demanding industrial conditions. Its precision design reduces misalignment, shock loads, and mechanical stress, enhancing the performance and lifespan of connected shafts and equipment.
Product Specification:
| Item | L Type Hub |
|---|---|
| # of Jaws | 3 |
| Bore Size | 5/8″ |
| Color | Metallic |
| Coupling Size | L095 |
| Coupling Type | Jaw |
| Dimension G | 0.52″ |
| Dimension SL | 0.44″ |
| Dimension T | 5/16-18 |
| Elastomeric Member | SOX (NBR) Rubber |
| HP Rating @ 100 RPM | 0.31hp |
| HP Rating @ 1200 RPM | 3.72hp |
| HP Rating @ 1800 RPM | 5.5hp |
| HP Rating @ 3600 RPM | 11.16hp |
|---|---|
| Hub Length | 1.52″ |
| Hub Style | 1 |
| Keyway Size | 3/16″ x 3/32″ |
| Length through Bore | 1″ |
| Material | Sintered Iron |
| Max. Bore | 1.125″ |
| Max. Speed | 9000 rpm |
| Min. Bore | 0.438″ |
| Nominal Torque | 194 In.Lbs. |
| Outside Dia. | 2.11″ |
| Overall Length | 2.51″ |
