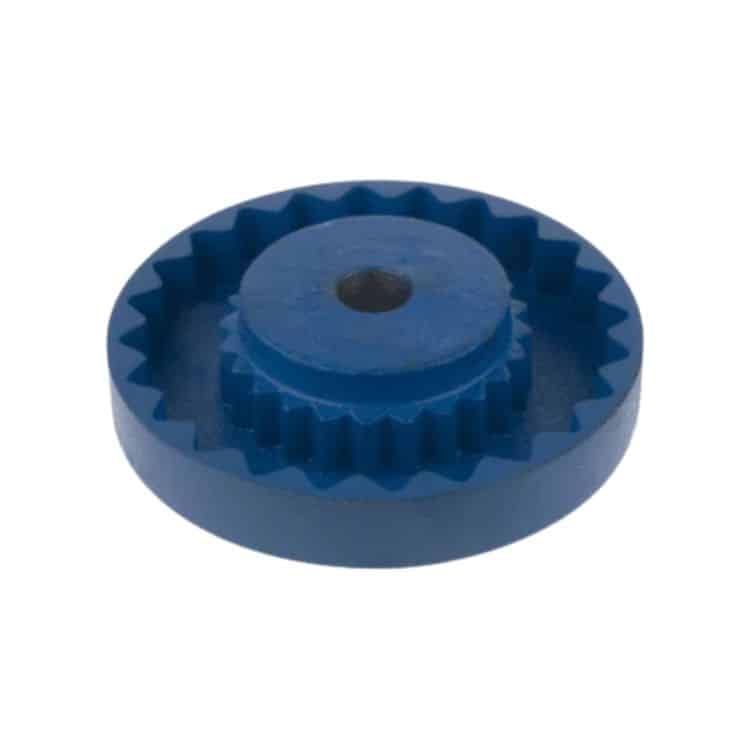

Martin 8S15/8 Coupling Flange
Martin 8S15/8 Coupling Flange
Product Description:
- A coupling flange is a type of flange used to connect two pieces of equipment or piping systems, providing both a mechanical connection and the ability to transmit torque or rotational power.
- It is often used in systems where the goal is to join pipes, shafts, or other machinery components securely, allowing for smooth transmission of power or fluid without leakage.
- It is often use to connect two separate sections of a machine or to couple the shafts of different components, allowing for the transmission of mechanical power between them.
- Coupling flanges are commonly found in various industrial applications, such as pumps, compressors, and other machinery.
Product Specification:
| RPM [MAX] | 4,500 rpm |
| KEYWAY SIZE | 3/8 x 3/16 |
| INCH/METRIC | Inch |
| SET SCREW | Yes |
| OUTSIDE DIA. | 5.4500 in |
| HUB DIA. | 3 1/4 in |
| LENGTH THROUGH BORE | 2 3/32 in |
| HUB LENGTH | 3/4 in |
| MATERIAL | Cast Iron |
| BORE SIZE | 1 5/8 in |
| COUPLING SIZE | 8S |
| LOCK TYPE | Setscrew |
