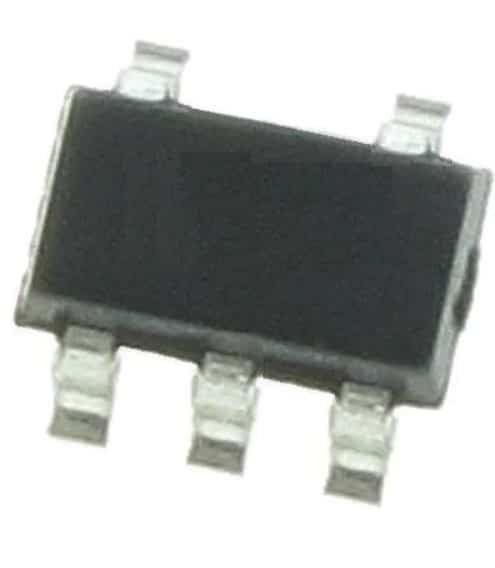

Microchip Technology 24LC01BTIOTG EEPROM
Microchip Technology 24LC01BTIOTG EEPROM
It is a type of non-volatile memory that can retain stored data even when power is removed. It is widely used in electronic devices and embedded systems for storing small amounts of data that need to be preserved across power cycles or system resets.
Product Specification:
- Manufacturer: Microchip Technology
- Product Category: EEPROM
- Memory Size: 1 kbit
- Organisation: 128 x 8
- Supply Voltage – Min: 2.5 V
- Supply Voltage – Max: 5.5 V
- Minimum Operating Temperature: – 40 C
- Maximum Operating Temperature: + 85 C
- Height: 1.3 mm (Max)
- Length: 3.1 mm (Max)
- Width: 1.8 mm (Max)
- Unit Weight: 6.300 mg
