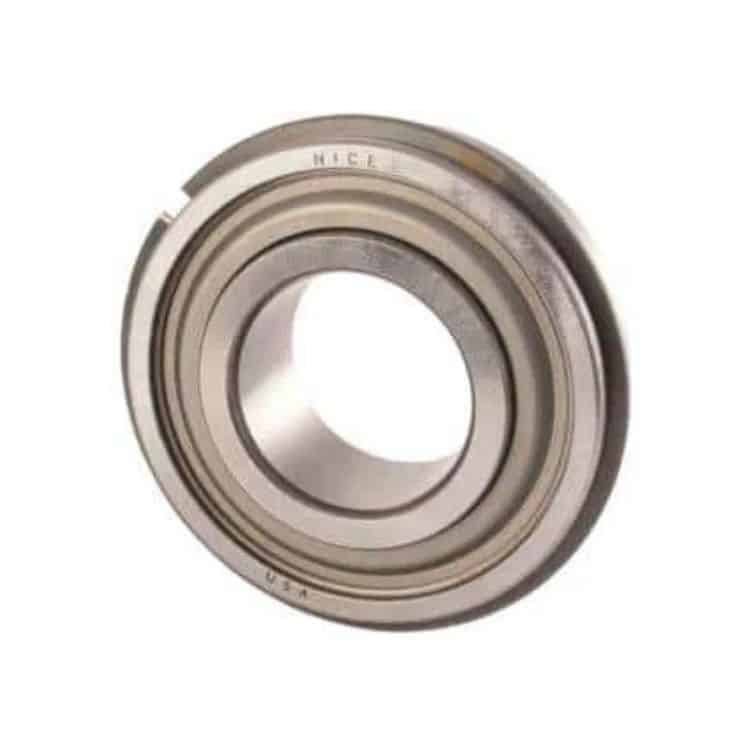

Nice 7520 Ball Bearing
Nice 7520 Ball Bearing
Product Description:
- They are a fundamental component in many devices, ranging from industrial machinery to household appliances.
- The Nice 7520 Ball Bearing is a precision-engineered, high-performance rolling element designed to deliver smooth rotation, reduced friction, and long service life in demanding industrial applications. Manufactured with strict quality standards, the Nice 7520 Ball Bearing ensures reliable operation under heavy loads, high speeds, and continuous working conditions.
- Built with premium-grade steel and advanced heat treatment processes, the Nice 7520 Ball Bearing offers excellent resistance to wear, corrosion, and mechanical stress. Its optimized internal geometry enhances load distribution, making the Nice 7520 Ball Bearing suitable for machinery where accuracy and durability are critical.
Product Specification:
| Bore Type | Round |
|---|---|
| Bore Diameter | 1.2500 in |
| Outside Diameter | 2.5625 in |
| Overall Width | 0.7500 in |
| Outside Ring Shape | Straight With Snap Ring Groove |
| Row Type & Fill Slot | Single Row Non-Fill Slot |
| Snap Ring Included | With Snap Ring |
| Internal Clearance | C0 |
| Maximum Operating Temperature | 300 °F |
| Operating Temperature Range | Maximum of +300 °F |
| Dynamic Load Capacity | 5360 lbf |
| Static Load Capacity | 2620 lbf |
| Precision Rating | Not Rated |
| Seal Type | Sealed |
| Finish/Coating | Chrome Steel |
| Bearing Material | 52100 Bearing Quality Steel |
| Cage Material | Nylon |
| Inner Ring Width | 0.8750 in |
| Outer Ring Width | 0.7500 in |
| Fillet Radius | 0.035 in |
| Maximum RPM | 5000 rpm |
| Number of Rows | 1 |
| Outside Diameter Design | Straight with Snap Ring Groove |
| Series | Nice® |
| Radial Dynamic Load Capacity | 5360 lbf |
| Radial Static Load Capacity | 2620 lbf |
| Application | Textile Machinery, Agrucultural Machinery, pulleys, idlers, Material Handling Equipment |
| Additional Details | 7520DLGTNTG18 – RBC NICE Ball Bearings – 7500 Series™ Heavy Duty Precision Ground Radial Bearings – 1.2500″ Bore, 2.5625″ OD, 0.7500″ Width |
| Manufacturer UPC Number | 637400292782 |
| Weight | 0.57 lb |
| Axial Static Load Capacity | 2620 lbf |
| Bearing Type | Precision Ground, Heavy Duty, Snap Ring |
