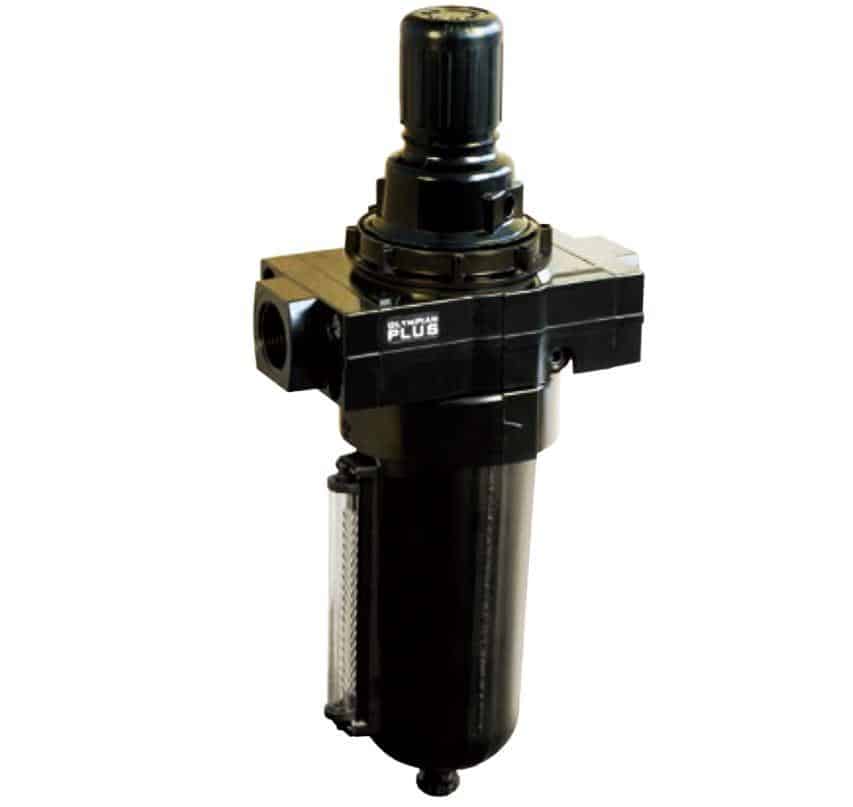

Norgren B68G Filter/Regulator
Norgren B68G Filter/Regulator
Product Description :
- A Filter/Regulator is a combined device commonly used in fluid systems (such as air or gas systems) to both filter impurities and regulate pressure.
- These devices are crucial in ensuring that the air or fluid being supplied is clean and at the correct pressure for optimal operation of machinery or equipment.
- The filter component removes impurities, dirt, moisture, and contaminants from the air or fluid before it enters the system.
- This helps prevent damage to sensitive equipment, such as pneumatic tools, compressors, or valves.
- The regulator part ensures that the air or fluid is maintained at a specific pressure.
- It automatically adjusts the pressure to a desired setpoint, compensating for fluctuations in the input pressure.
- This ensures consistent operation of the equipment and prevents over-pressurization or under-pressurization that could cause malfunction or damage
Product Specification:
- Manufacturer : Norgren
- ITEM: B68G-6AK-AR1-RLN
- High efficiency water removal
- Good regulation characteristics
- Non-rising adjusting knob has snap-action lock
- Port size: 3/4″ PTF’
- Filter element: 5.00 µm
- Outlet pressure adjustment: 0.4 … 8 bar
- Gauge: Without
- Series: Olympian Plus
- Medium: Compressed air
- Port size: 3/4″ PTF
- Maximum inlet pressure: 17.0 bar
- Relieving/non-relieving: Relieving
- Outlet pressure adjustment: 0.4 … 8 bar
- Drain type: Auto drain
- Filter/Regulator
- Gauge: Without
- Gauge port: 1/8″ PTF
- Material – Adjusting knob: Acetal resin
- Material – Body: Aluminium
- Material – Bonnet: Aluminium
- Material – Bowl: Aluminium
- Material – Elastomers: Nitrile rubber
- Series: Olympian Plus
- Material – Filter element: Sintered plastic
- Filter element: 5.00 µm
- Operating temperature: -20 … 80 °C
- Actual Dimension Standard Packing Box HXWXD (cm) : 3 X 8 X 12
