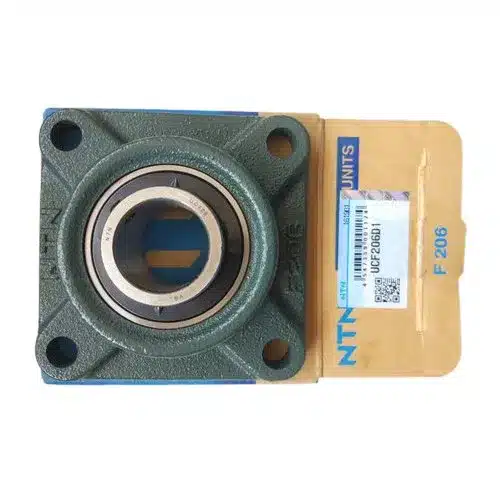

NTN UCF206D1 Bearing Unit
NTN UCF206D1 Bearing Unit
Product Description:
- It is a pre-assembled combination of a bearing and its housing, designed to simplify installation and operation.
- It is commonly used in applications where the bearing needs to be mounted and supported in a specific manner, such as in industrial machinery, conveyors, and automotive systems.
- Bearing units are made to house a bearing securely and provide protection, support, and sometimes additional features like lubrication.
Product Specification:
| Type | 4-Bolt Square Flanged Unit |
| Bearing Type | Block Bearing |
| Locking Device | Set Screw |
| Seal Type | Contact |
| Seal Material | Nitrile Rubber |
| Bearing Number | UC206D1 |
| Housing Number | F206D1 |
| Housing Material | Cast Iron |
| Housing Construction | 1 Piece |
| End Type | Open |
| Performance | Light Duty |
| Dynamic Load Rating | 4400 lbf19500 N19.50 kN |
| Static Load Rating | 2540 lbf11300 N11.30 kN |
| Rotational Speed [Max] | 4900 RPM |
| Weight | 2.256 lb1.023 kg |
| Operating Temperature Range | -40 to 250 ºF-40 to 120 ºC |
| Lubrication | Relubricatable |
