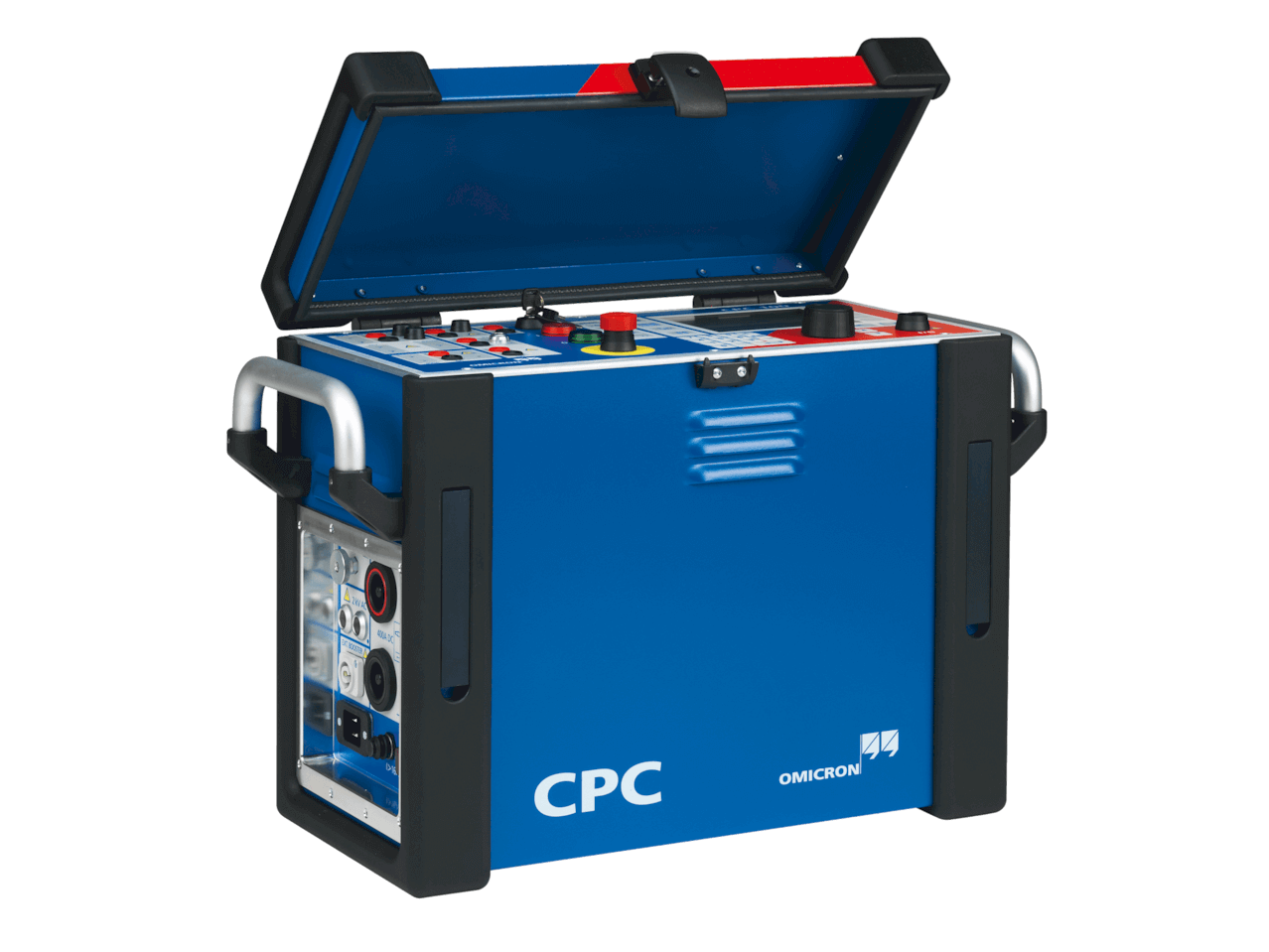

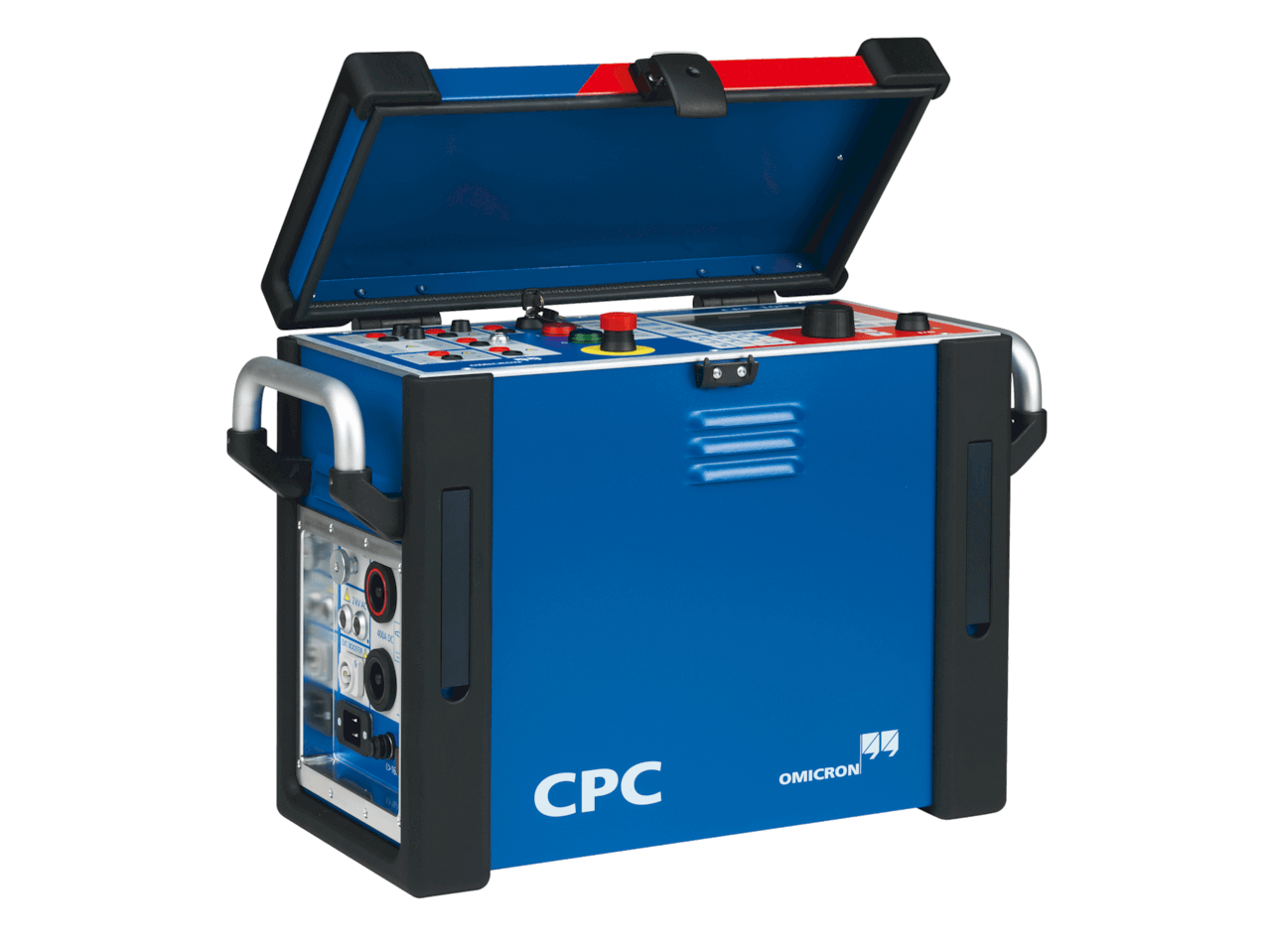

Omicron CPC 100 Primary Injection Test System
Omicron CPC 100 Primary Injection Test System
Product Description :
- It is a high-current testing device used to verify the performance of electrical protection systems, especially circuit breakers, switchgear, and protective relays by injecting large currents directly into the system’s primary circuit.
- This testing method involves applying a controlled high current (often thousands of amps) directly to the primary side of electrical components (like CTs, relays, or breakers) to simulate real fault conditions. It ensures the entire protection path — from current transformer (CT) to relay to breaker — operates as expected.
Product Specification :
- Up to 800 A or 2000 V with up to 5 kVA over a frequency range of 15 Hz – 400 Hz or 400 A DC
- Excellent interference suppression facilitates measurement of small signals
- Easy to transport (just 29 kg) – ideal for on-site testing
- Testing templates, automatically generated testing procedures and test reports
- Up to 2000 A or 12 kV/ 15kV through use of current or voltage amplifiers
