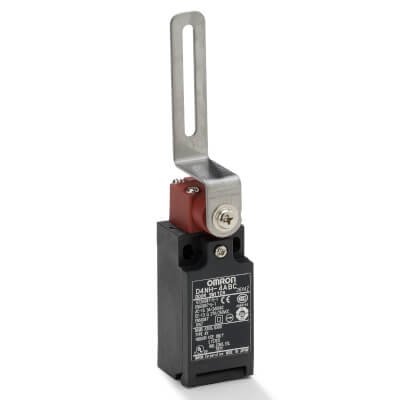

Omron D4NH-4BBC Safety Door Hinge Switch
Omron D4NH-4BBC Safety Door Hinge Switch
Product Description :
- It is a mechanically operated safety switch that is built into or attached to the hinge of a protective door, gate, or guard. It ensures that industrial machines or hazardous equipment cannot operate while the door is open, protecting operators from injury.
- The hinge aligns and actuates the internal switch.The circuit is completed, allowing the machine to operate.Many systems use safety relays or controllers to monitor the state of the switch.If tampering or failure is detected, the system goes into safe shutdown.
Product Specification :
| Door switch type | Hinge-operated |
| Material housing | Plastic |
| Material head | Plastic |
| Actuator type | Arm lever |
| Door contacts NC | 2 |
| Door contacts NO | 0 |
| LED indicator | |
| Connection method | Terminal block |
| Cable length | 0 m |
| Degree of protection (IP) | IP67 |
| Conduit size | M20 |
| Number of conduits | 1 |
| Switch action | Slow action |
| Shape | Cuboid |
| Overall length of sensor | 82.5 mm |
| Height of sensor | 37.9 mm |
| Width of sensor | 31 mm |
