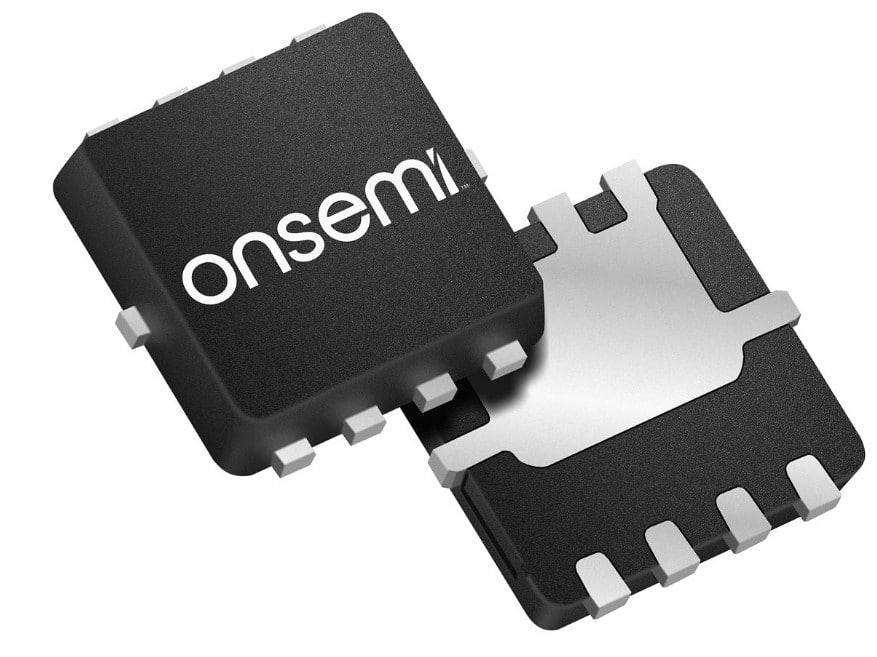

ONSEMI NTTFS4C05NTAG MOSFET
ONSEMI NTTFS4C05NTAG MOSFET
- It is a type of semiconductor device used for amplifying or switching electronic signals. They are widely used in various electronic circuits and systems due to their high input impedance, fast switching speed, low power consumption, and compact size. They are commonly used as switches in digital logic circuits, power supplies, motor control, and other applications where fast switching and low power dissipation are required. They are versatile semiconductor devices widely used in electronics for amplification, switching, and voltage regulation purposes due to their excellent performance characteristics and reliability.
Product Specification:
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs
|
3.6mOhm @ 30A, 10V
|
|
|
Vgs(th) (Max) @ Id
|
2.2V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs
|
31 nC @ 10 V
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1988 pF @ 15 V
|
