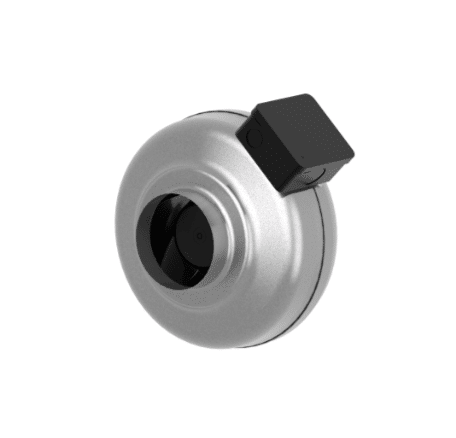

Ostberg CK100CEC Duct Fan
Ostberg CK100CEC Duct Fan
Product Description :
- It is a type of fan specifically designed to be installed within ductwork to improve airflow and ventilation in heating, ventilation, and air conditioning (HVAC) systems.
- They are typically compact and designed to fit within standard duct sizes. They can be axial or centrifugal in design, depending on the airflow requirements.
- It enhances the circulation of air, ensuring even distribution of temperature and improving indoor air quality.
- A Duct Fan is a mechanical device designed to move air efficiently through ductwork in HVAC, ventilation, and industrial systems. It helps maintain proper airflow, temperature control, and indoor air quality by boosting air circulation or exhausting stale air. Duct fans are engineered for quiet operation, energy efficiency, and long-term reliability, and are available in various sizes and configurations to suit different airflow requirements.
Product Specification:
| Parameter | Value | Unit |
|---|---|---|
| Voltage | 230 | V |
| Phase | 1 | ~ |
| Frequency | 50/60 | Hz |
| Power | 95 | W |
| Current | 0.8 | A |
| Speed | 3640 | r.p.m. |
| Max. temperature of transported air | 60 | °C |
| Sound pressure level at 3 m | 47 | dB(A) |
| Weight | 2.5 | kg |
| Enclosure class | 44 | IP |
| Insulation class, motor | F | |
| Duct connection | 100 | mm |
| Max. flow @ 0Pa | 103 | l/s |
| Max. pressure | 595 | Pa |
