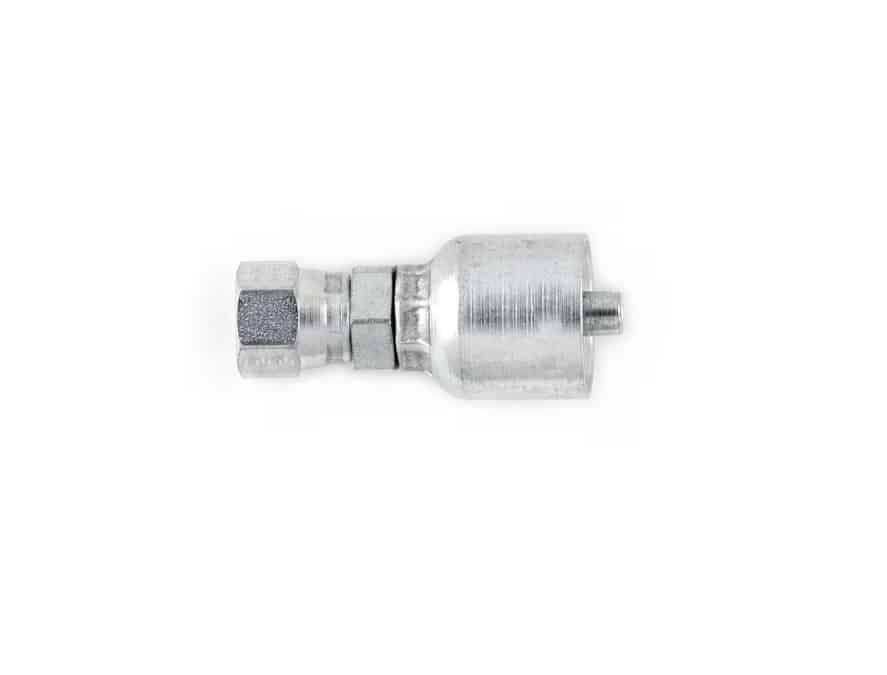

Parker 10643-6-6 Crimped Hose Fitting
Parker 10643-6-6 Crimped Hose Fitting
Product Description :
- It refers to a type of fitting that is used to attach a hose to a pipe, valve, or other equipment. The term crimped refers to the process of mechanically squeezing (crimping) a metal sleeve or collar around the hose to create a secure, leak-proof seal. This is commonly used in hydraulic and pneumatic systems, as well as in various industrial applications.
- The hose is cut to the desired length, and the fitting (such as a steel or brass fitting) is inserted into the end of the hose.A crimping tool, which is a machine or hand tool, applies a high-pressure force around a crimping sleeve (typically made of steel) that surrounds the hose and the fitting.
Product Specification :
| Port Connection: | 3/8″ |
| Connection Size: | 9/16″-18 inch Thread, UNF |
| Part Number : | 10643-6-6 |
| Product Style: | Female JIC 37° – Swivel |
| Shape: | Straight |
| Materials of Construction: | Steel |
| Brand : | Parker |
| Nut Hex Size: | 11/16 inch, 17 mm |
| Hose I.D. (size): | -6 |
| Back-Up Hex Size: | 11/16 inch, 17.53 mm |
