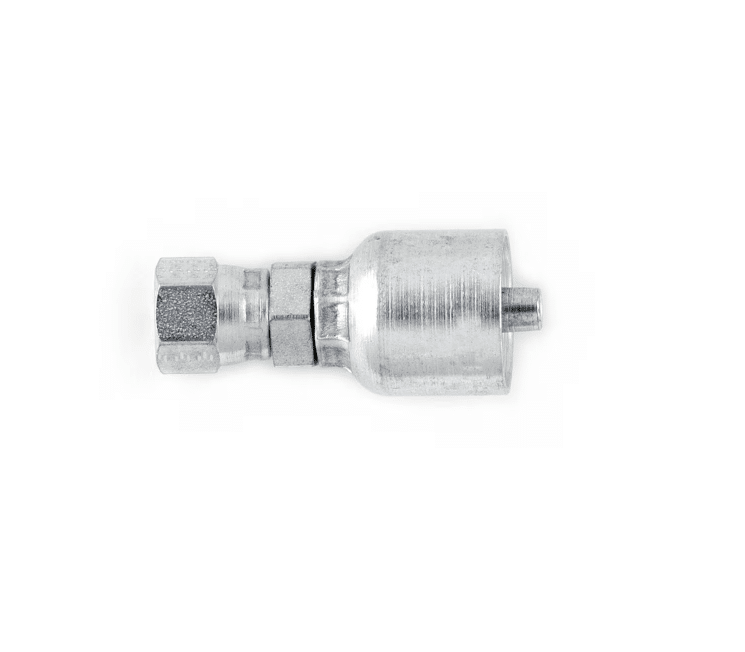

Parker 106431616 Hydraulic Hose Fitting
Parker 106431616 Hydraulic Hose Fitting
Product Description :
- They are crucial components in hydraulic systems, providing the connection between hoses and other system parts. They come in various types and sizes, designed to ensure leak-free operation under high pressure.
- Applications include hydraulic industry standard, constant working pressure, high temperature, low temperature, suction and return.
- • No-Skive technology offers easy, efficient, and safe production processes.• One piece reduces complexity and leakage path.
-
A hydraulic hose fitting is a critical component used to connect hydraulic hoses to pumps, valves, cylinders, and other parts of a hydraulic system, ensuring secure, leak-free, and high-pressure connections. These fittings play a vital role in maintaining system reliability, safety, and performance under demanding conditions.
-
Manufactured from high-strength materials such as carbon steel, stainless steel, or brass, hydraulic hose fittings are designed to withstand high pressures, extreme temperatures, and corrosive environments. They are available in various types, including crimp fittings, reusable fittings, and push-to-connect fittings, to suit different system requirements.
Product Specification :
| Product Style: | Female JIC 37° – Swivel |
| Port Size: | 1 inch |
| Hose I.D. (size): | -16 |
| Connection Size: | 1-5/16″-12 inch Thread |
| Flange Size: | n/a |
| Product Style: | Female JIC 37° – Swivel |
| Shape: | Straight |
| Materials of Construction: | Steel |
| Part Number : | 106431616 |
| Nut Hex Size: | 1-1/2 inch, 38 mm |
| Back-Up Hex Size: | 1-3/8 inch, 34 mm |
