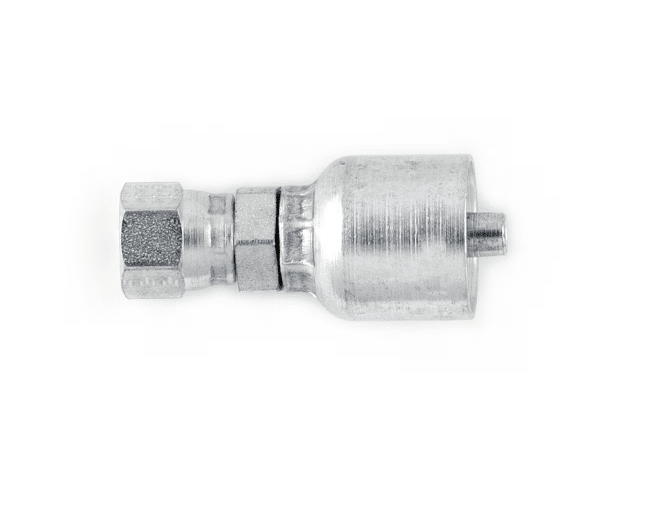

Parker 106432424 Hydraulic Hose Fitting
Parker 106432424 Hydraulic Hose Fitting
Product Description :
- Hydraulic hose fittings are components used to connect hydraulic hoses to other parts of a hydraulic system, such as pumps, cylinders, valves, and other equipment.
- These fittings ensure a secure and leak-free connection, allowing hydraulic fluid to flow through the system efficiently while withstanding the pressure and harsh conditions.
- They are crucial components in hydraulic systems, providing the connection between hoses and other system parts.
- They come in various types and sizes, designed to ensure leak-free operation under high pressure.
- Applications include hydraulic industry standard, constant working pressure, high temperature, low temperature, suction and return.
- No-Skive technology offers easy, efficient, and safe production processes.
- One piece reduces complexity and leakage path.
- Petroleum base hydraulic fluids and lubricating oils.
-
A hydraulic hose fitting is a precision-engineered component used to connect hydraulic hoses to pumps, valves, cylinders, and other system parts, ensuring a secure, leak-free, and high-pressure connection. These fittings are essential for maintaining system integrity, safety, and efficiency in hydraulic applications.
-
Constructed from high-strength materials such as carbon steel, stainless steel, or brass, hydraulic hose fittings are designed to withstand high pressures, vibration, and extreme temperatures. They are available in multiple types, including crimp fittings, reusable fittings, and push-to-connect fittings, to match various system requirements.
Product Specification :
| Port Size: | 1-1/2 inch |
| Product Style: | Female JIC 37° – Swivel |
| Hose I.D. (size): | -24 |
| Connection Size: | 1-7/8″-12 inch Thread |
| Flange Size: | n/a |
| Product Style: | Female JIC 37° – Swivel |
| Shape: | Straight |
| Materials of Construction: | Steel |
| Banjo Port Diameter: | n/a |
| Nut Hex Size: | 2-1/4 inch, 57.15 mm |
| Back-Up Hex Size: | 2-1/8 inch, 53.98 mm |
