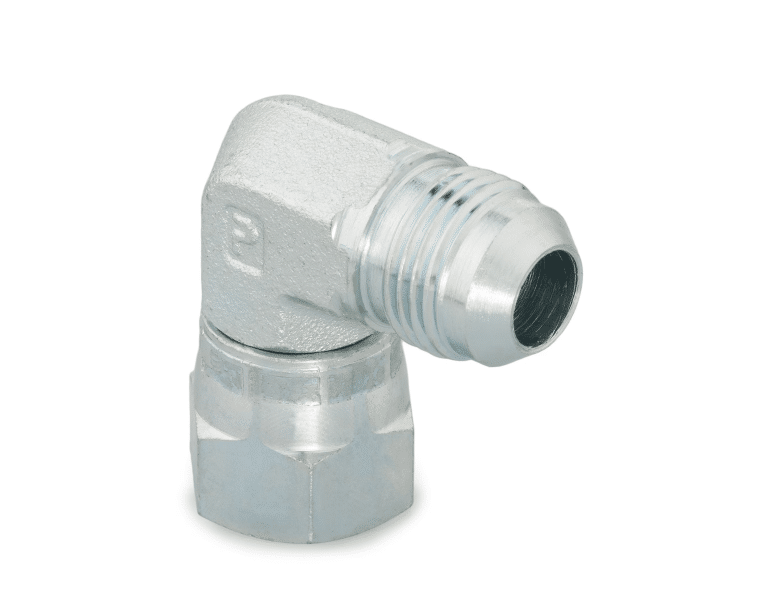

Parker 16 C6X-S Tube Fittings
Parker 16 C6X-S Tube Fittings
Product Description :
- They are a type of hydraulic fitting commonly used in fluid systems. They are designed for high-pressure applications and are known for their reliability and leak-free connections.
- They typically have a 37-degree flare on the fitting end, which allows for a secure and tight seal when mated with a similarly flared tube.
- These fittings are usually made from durable materials like steel, stainless steel, or brass, which can withstand high pressures and corrosive environments.
- They are standardized, which means they can be used interchangeably with other manufacturers’ products that meet the same specifications.
Product Specification :
| Connection Type: | 37° Flare, Tube to Tube |
| Specifications Met: | SAE J514 |
| Maximum Dynamic Pressure: | 4000 psi |
| Shape: | 90° Elbow |
| Connection 1 Size: | Male 37° Flare |
| Connection 1 Tube Outside Diameter: | 1 inch, 25 mm |
| Connection 2 Size: | Female 37° Flare Swivel |
| Connection 2 Tube Outside Diameter: | 1 inch, 25 mm |
