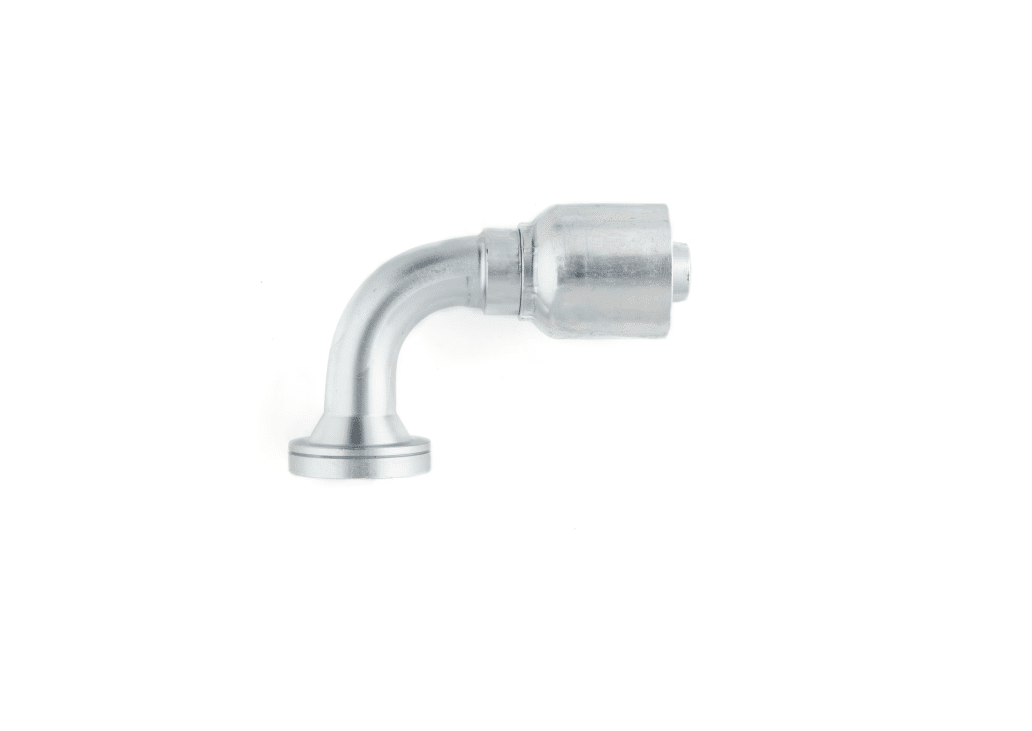

Parker 16N432020 Hydraulic Hose Fitting

Parker 16N432020 Hydraulic Hose Fitting

Parker 16N432020 Hydraulic Hose Fitting

Product Description :

• They are crucial components in hydraulic systems, providing the connection between hoses and other system parts. They come in various types and sizes, designed to ensure leak-free operation under high pressure.
• Applications include hydraulic industry standard, constant working pressure, high temperature, low temperature, suction and return.
• • No-Skive technology offers easy, efficient, and safe production processes.• One piece reduces complexity and leakage path

Product Specification :

• Hose I.D. (size):	-20
  Port Connection:	1-1/4″
  Port Size:	1-1/4 inch
  Connection Size:	n/a
  Flange Size:	1-1/4 inch
  Product Style:	SAE Code 62 Flange Head
  Shape:	Elbow 90°
  Materials of Construction:	Steel
  Hose Inside Diameter:	-20 (Size), 1-1/4 inch
  Part Number :	16N432020
  Back-Up Hex Size:	n/a
