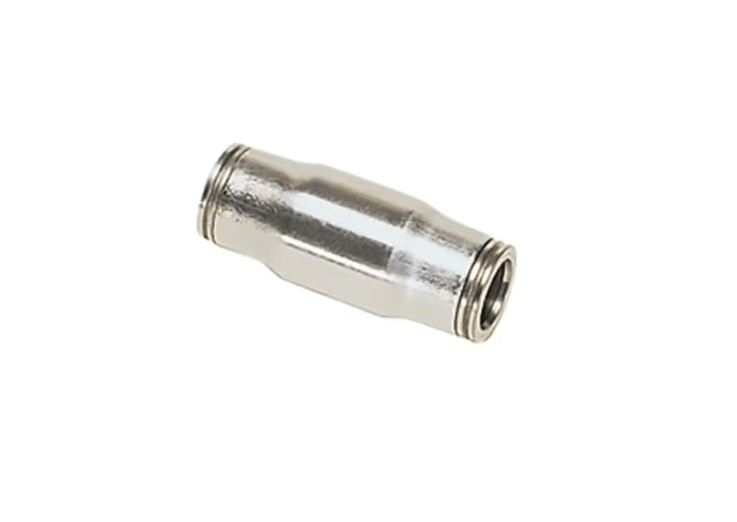

Parker 38060600 Push In Fitting
Parker 38060600 Push In Fitting
Product Description :
- They are widely used in pneumatic and fluid systems for quick and easy connection and disconnection of hoses or tubing without the need for tools.
- They allow for quick and tool-free connection. You simply push the tubing into the fitting, and internal components secure it in place.
- They often include a mechanism (such as a release collar or push-button) that allows for easy disconnection of the tubing when needed.
Product Specification :
| Maximum Operating Temperature: | 302 °F, 150 °C |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| For Fluid Type: | Other Fluids: Please Consult Us, Water, Air |
| Specifications Met: | USDA NSF H1 (Grease), EC 1935/2004, FDA 21 CFR, UL 94 V-0 (Seal), REACH DI: 1907/2006, ATEX DI: 94/9/EC, RoHS DI: 2011/65/EC, RoHS DI: 2002/95/EC, PED DI: 97/23/EC, ISO 14743 (Pneumatic Transmissions) |
| Body Material: | Stainless Steel AISI 316L |
| Seal Material: | FKM |
| Brand : | Parker |
| Part Number : | 38060600 |
| Maximum Operating Pressure: | 30 bar, 435 psi |
| Materials of Construction: | Stainless Steel AISI 316L (Nut), Stainless Steel AISI 316L (Collet) |
| Shape: | Straight |
