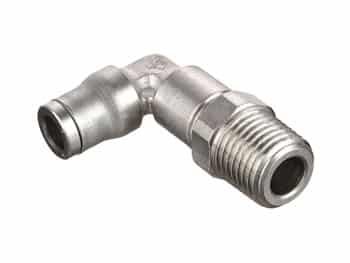

Parker 3809-04-11 Quick Fitting Elbow NPT
Parker 3809-04-11 Quick Fitting Elbow NPT
Product Description :
- It refers to a type of pipe fitting that connects two pipes at a 90-degree angle and incorporates a National Pipe Tapered (NPT) thread.
- These fittings are designed for easy and fast installation and removal without the need for specialized tools, often using a push-to-connect or snap-fit mechanism.The elbow fitting changes the direction of fluid flow by 90 degrees, typically from horizontal to vertical or vice versa.
- NPT threads are a type of threading standard used for pipe fittings . These threads are tapered, meaning they get narrower as they go deeper into the fitting, ensuring a tight seal when tightened.
- These fittings are typically made from strong materials like stainless steel or brass, making them durable and resistant to wear.
Product Specification :
| Shape: | Elbow 90° |
| Connection Type: | Tube to Port |
| Connection 1 Type: | Tube |
| Connection 1 Size: | 1/8 inch Tube O.D. |
| Connection 2 Type: | Tube (O.D.) |
| Connection 2 Size: | 4 mm Tube O.D. |
| Hex Size: | 11 mm |
| Maximum Operating Temperature: | 302 °F, 150 °C |
| Minimum Operating Temperature: | -13 °F, -25 °C |
