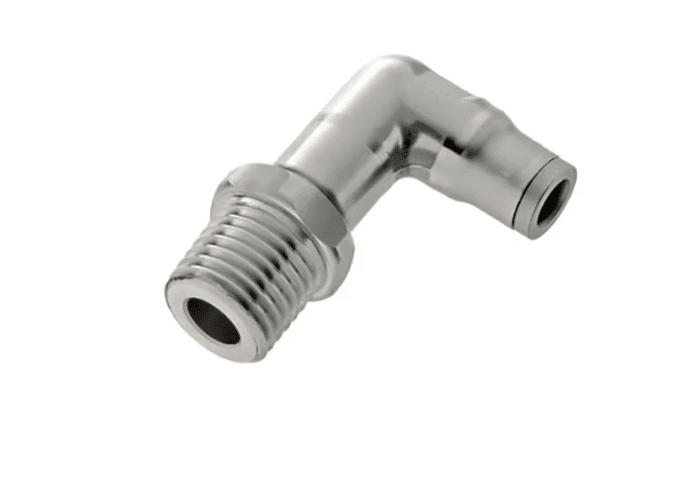

Parker 38090614 Stud Elbow Fitting
Parker 38090614 Stud Elbow Fitting
Product Description :
- It is a type of connector used in various piping, tubing, and hydraulic systems. It combines the functions of a stud fitting and an elbow fitting, allowing for a change in direction while connecting threaded components.
- The fitting has a threaded stud, which is typically male-threaded. This stud allows it to be screwed into a female-threaded port or component. The elbow shape allows for a 90-degree or other angled turn in the piping or tubing, making it easier to route lines around obstacles or change the direction of flow.
-
The Stud Elbow Fitting is a durable pipe connector designed to change the direction of fluid or gas flow in piping systems, typically at a 45° or 90° angle. By providing a secure and leak-proof connection, it ensures smooth system operation and protects against pressure loss or leakage.
-
Constructed from high-quality materials such as stainless steel, carbon steel, or brass, the stud elbow fitting offers excellent strength, corrosion resistance, and long-lasting performance under demanding conditions. It is widely used in hydraulic, pneumatic, and industrial piping systems.
Product Specification :
| Maximum Operating Temperature: | 302 °F, 150 °C |
| Minimum Operating Temperature: | -13 °F, -25 °C |
| For Fluid Type: | Other Fluids: Please Consult Us, Water, Air |
| Specifications Met: | USDA NSF H1 (Grease), EC 1935/2004, FDA 21 CFR, UL 94 V-0 (Seal), REACH DI: 1907/2006, ATEX DI: 94/9/EC, RoHS DI: 2011/65/EC, RoHS DI: 2002/95/EC, PED DI: 97/23/EC, ISO 14743 (Pneumatic Transmissions) |
| Body Material: | Stainless Steel AISI 316L |
| Seal Material: | FKM |
| Brand : | Parker |
| Part Number : | 38090614 |
| Maximum Operating Pressure: | 30 bar, 435 psi |
| Materials of Construction: | Stainless Steel AISI 316L (Nut), Stainless Steel AISI 316L (Collet) |
| Shape: | Elbow 90° |
