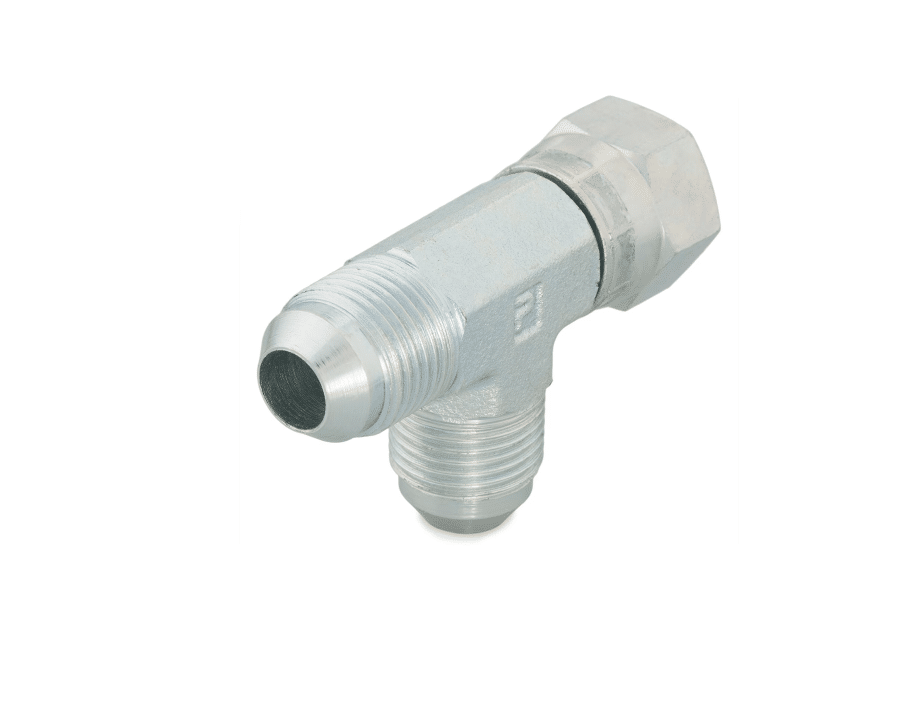

Parker 4 R6X-S Tube Fittings
Parker 4 R6X-S Tube Fittings
Product Description :
- They are a type of hydraulic fitting commonly used in fluid systems. They are designed for high-pressure applications and are known for their reliability and leak-free connections.
- They typically have a 37-degree flare on the fitting end, which allows for a secure and tight seal when mated with a similarly flared tube.
- These fittings are usually made from durable materials like steel, stainless steel, or brass, which can withstand high pressures and corrosive environments.
- They are standardized, which means they can be used interchangeably with other manufacturers’ products that meet the same specifications.
Product Specification :
Technical Specifications
| Connection Type: | 37° Flare, Run Tee |
| Specifications Met: | SAE J514 |
| Maximum Dynamic Pressure: | 7500 psi |
| Shape: | Tee |
| Connection 1 Size: | Male 37° Flare |
| Connection 1 Tube Outside Diameter: | 1/4 inch, 6 mm |
| Connection 2 Size: | Female 37° Flare Swivel |
| Connection 2 Tube Outside Diameter: | 1/4 inch, 6 mm |
