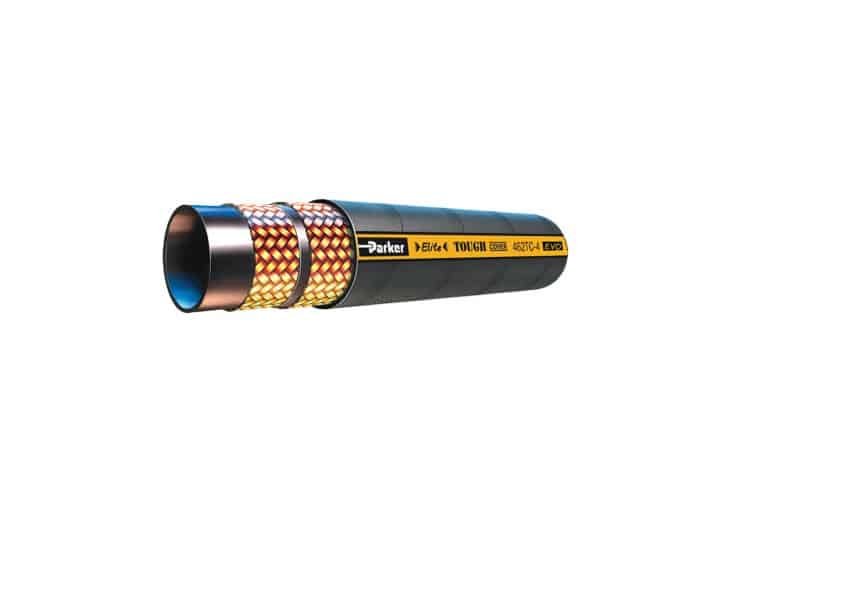

Parker 462TC-4 No-Skive Hose
Parker 462TC-4 No-Skive Hose
Product Description :
- It is a type of hydraulic hose that does not require the skiving (removal of the outer layer of the hose) during the process of fitting the hose to the fitting. This feature simplifies the installation process and saves time and effort, making it an attractive option for both manufacturers and end-users.
- The outer layer (cover) of the hose must be skived off (removed) before the fitting can be attached, exposing the inner reinforcement layer. This is required to ensure a secure, leak-free connection.
Product Specification :
| Compatible Fitting: | 46 Series, 48 Series |
| Inside Diameter: | 1/4 inch, 6.4 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | Medium Pressure Hydraulics (all markets) |
| Hose Reinforcement Material: | 2 Braids of High Tensile Wire |
| Outside Diameter: | 0.527 inch, 13.4 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Off-road Machinery |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Specialty Hose |
| Product Style: | Elite No-Skive Compact Tough Cover |
| Hose I.D. (size): | -4 |
| Maximum Operating Pressure: | 6160 psi, 42.5 MPa, 425 bar |
| Minimum Bend Radius: | 50 mm, 1.969 inch |
| Design Factor: | 4:1 |
| Minimum Operating Temperature: | -40 °C |
| Materials of Construction: | Rubber |
| Cover Material: | High Abrasion Resistant MSHA approved |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Weight: | 0.30 kg/m, 0.20 lb/ft |
