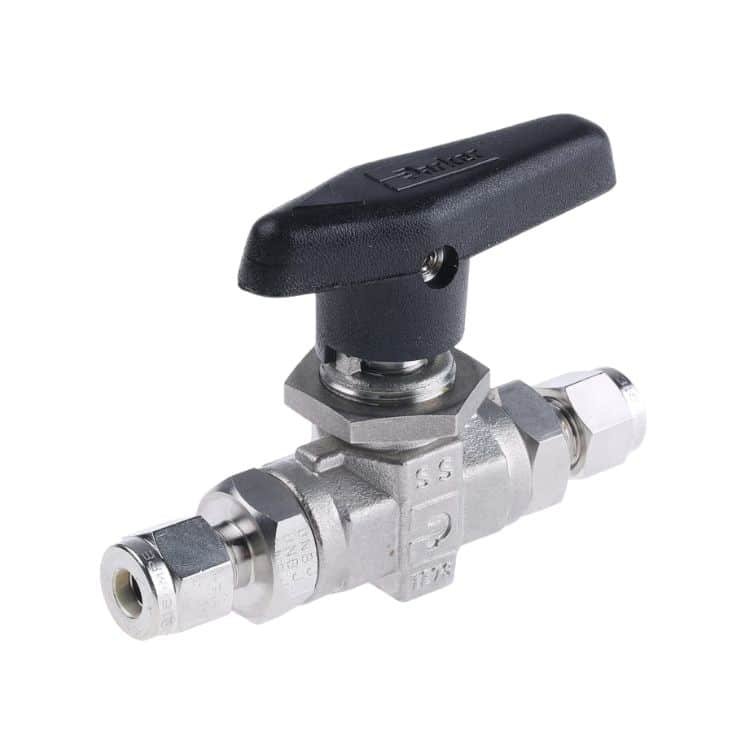

Parker 4A-B6LJ2-SSP Ball Valve
Parker 4A-B6LJ2-SSP Ball Valve
Product Description :
- It is a type of valve that uses a spherical disc (the ball) to control the flow of fluid through a pipe.
- The valve consists of a ball with a hole (or port) through the middle, mounted in a housing. When the ball is rotated, the hole aligns with the flow path to allow fluid to pass or is turned perpendicular to block the flow. Typically operated manually with a lever or automatically with an actuator.
-
A Ball Valve is a quarter-turn valve that uses a hollow, perforated, and pivoting ball to control the flow of liquids or gases through a pipeline. By rotating the ball 90 degrees, the valve can quickly start, stop, or regulate flow, providing reliable and tight shut-off.
-
Constructed from durable materials such as stainless steel, brass, or PVC, ball valves are designed for corrosion resistance, high pressure tolerance, and long service life. They are available in various types, including manual, pneumatic, and motorized actuated valves, to suit different applications.
-
Widely used in industrial, plumbing, oil and gas, chemical, and water treatment systems, ball valves ensure efficient flow control, leak prevention, and operational reliability.
Product Specification :
| Maximum Operating Temperature: | 232 °C, 450 °F |
| Minimum Operating Temperature: | -54 °C, -65 °F |
| Materials of Construction: | Stainless Steel 316 |
| Flow Rate: | 1.04 Cv |
| Connection 1 Size: | 1/4 inch, Two Ferrule Compression |
| Connection 2 Size: | 1/4 inch, Two Ferrule Compression |
| Valve Type: | 2-Way |
| Seat Material: | PEEK |
