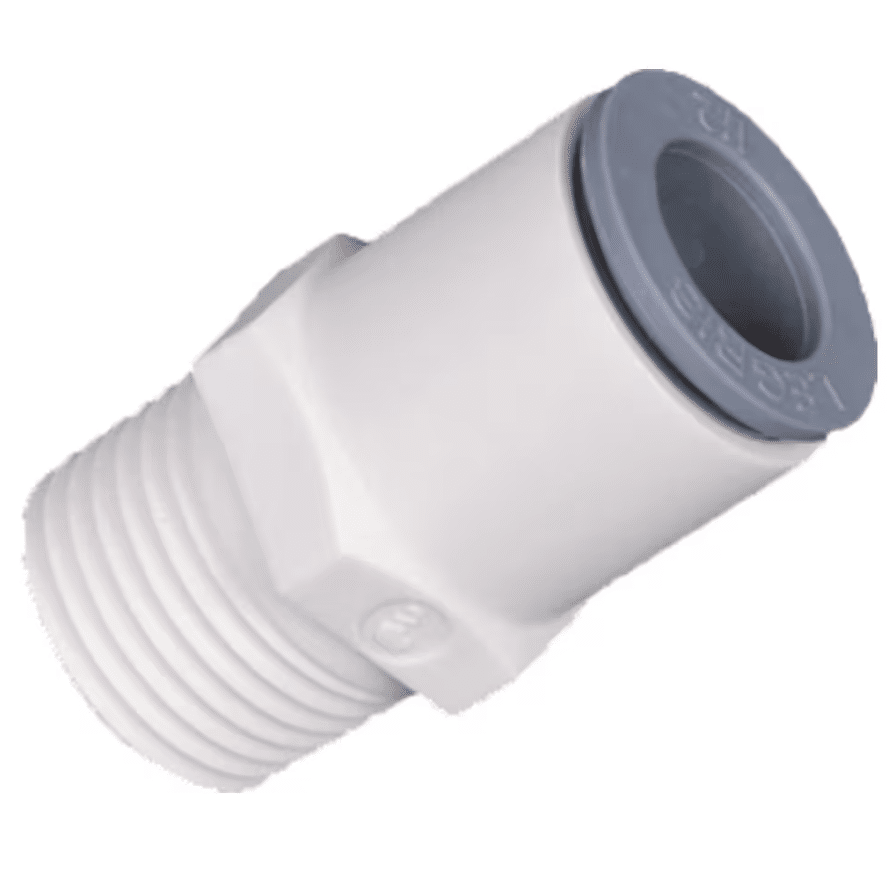

Parker 65055614WP2 Stud Fitting
Parker 65055614WP2 Stud Fitting
Product Description :
- It is a type of mechanical connector used in various applications to join components or pipes. It generally consists of a threaded stud, which is a cylindrical rod with external threads, and sometimes an accompanying nut or a corresponding threaded component.
- They are used to connect pipes and fixtures, especially in situations where a secure, threaded connection is needed.
-
The Stud Fitting is a robust connector designed to join pipes, tubes, or hoses securely in hydraulic, pneumatic, and industrial systems. By providing a strong, leak-proof connection, it ensures reliable fluid or gas flow and enhances overall system integrity.
-
Constructed from high-quality materials such as stainless steel, brass, or carbon steel, the stud fitting offers excellent durability, corrosion resistance, and long-lasting performance under high-pressure and demanding conditions. It is widely used in machinery, manufacturing, and industrial piping systems.
Product Specification :
- Maximum Continuous Vacuum Pressure : 755 mm-Hg
- Product Style : Stud Fitting
- Minimum Operating Temperature : 14 °F, -10 °C (For application down to -40°C/-40°F, please consult us).
- For Fluid Type : Beverages, Industrial Fluids, Water, Neutral Gases
- Industry : Industrial Manufacturing Equipment|Food & Beverages, Healthcare & Life Sciences
- Maximum Operating Temperature : 203 °F, 95 °C
- Maximum Operating Pressure : 232 psi, 16 bar
- Application : Water Purification, Beverage Dispensing, Food Processing, Medical Equipment, Inert Gases
- Body Material : Bio-based Polymer
- Seal Material : EPDM
- Gripping Ring Material : Stainless Steel
- Shape : Straight
- Connection 1 Size : 1/4 inch Tube O.D.
- Connection 2 Size : NPT 1/4 inch
